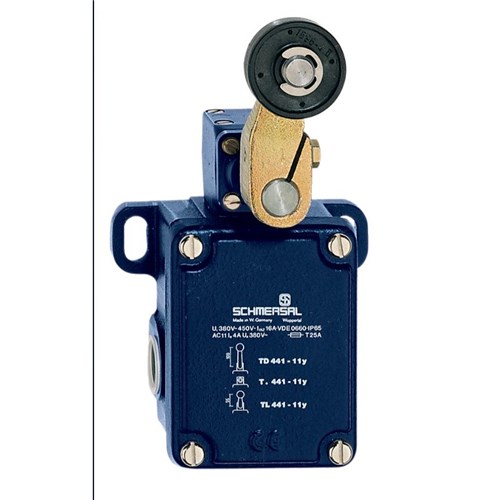

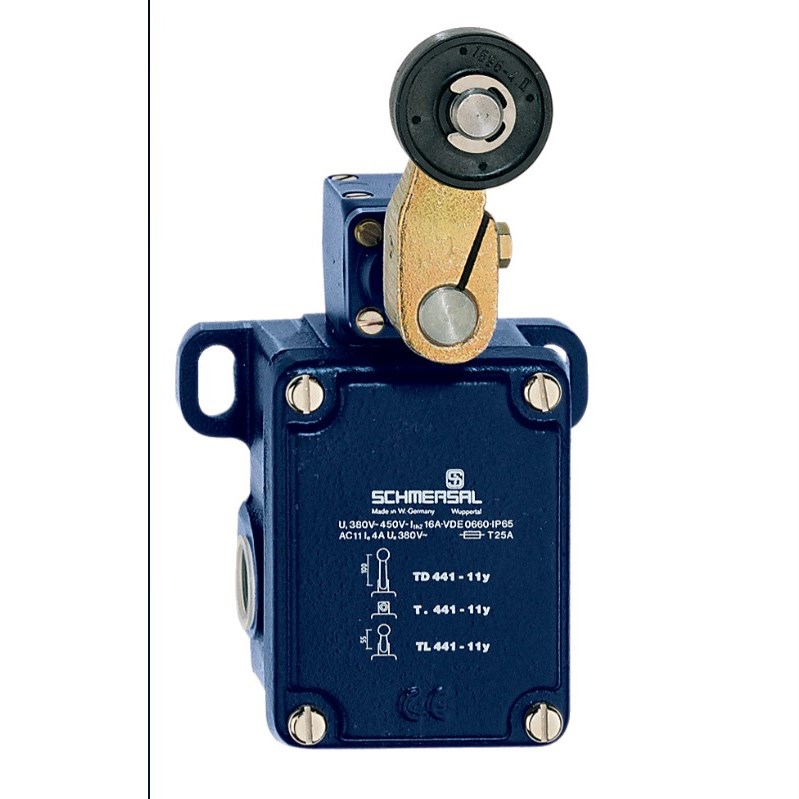

Schmersal 101100016 Medium-Duty Position Switch Roller Lever 1NO-1NC Grey Cast Iron Galvanised Silver Contact

Product Code: 101100016

  • 16 A limit switch with IP65 protection
  • Durable grey cast iron housing
  • 1NO+1NC silver contacts for reliability
  • Roller lever actuator, slow action type
  • Long-lasting with 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441

Electrical

Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
250V AC
Switching Principle
Snap action
Utilization Category
AC-15 400 VAC / 4 A
Contact Configuration
1 NC + 1 NO
Mechanical Life
5,000,000 operations
Thermal Test Current
16A

Mechanical

Cable Cross Section
1.5mm² to 2.5mm²
Cable Entry
Screw terminals; 2 x M20 x 1.5 mm² cable entries
Contact Material
Silver
Housing Material
Grey cast iron, galvanised; painted
Actuator / Operating Element
Roller lever; brass roller

Dimensions & Physical Data

Depth
192
Height
106
Weight
1.665kg
Width
63

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Safety, Standards & Compliance

Standards and Approvals
CCC; DNV; EN IEC 60947-5-1
