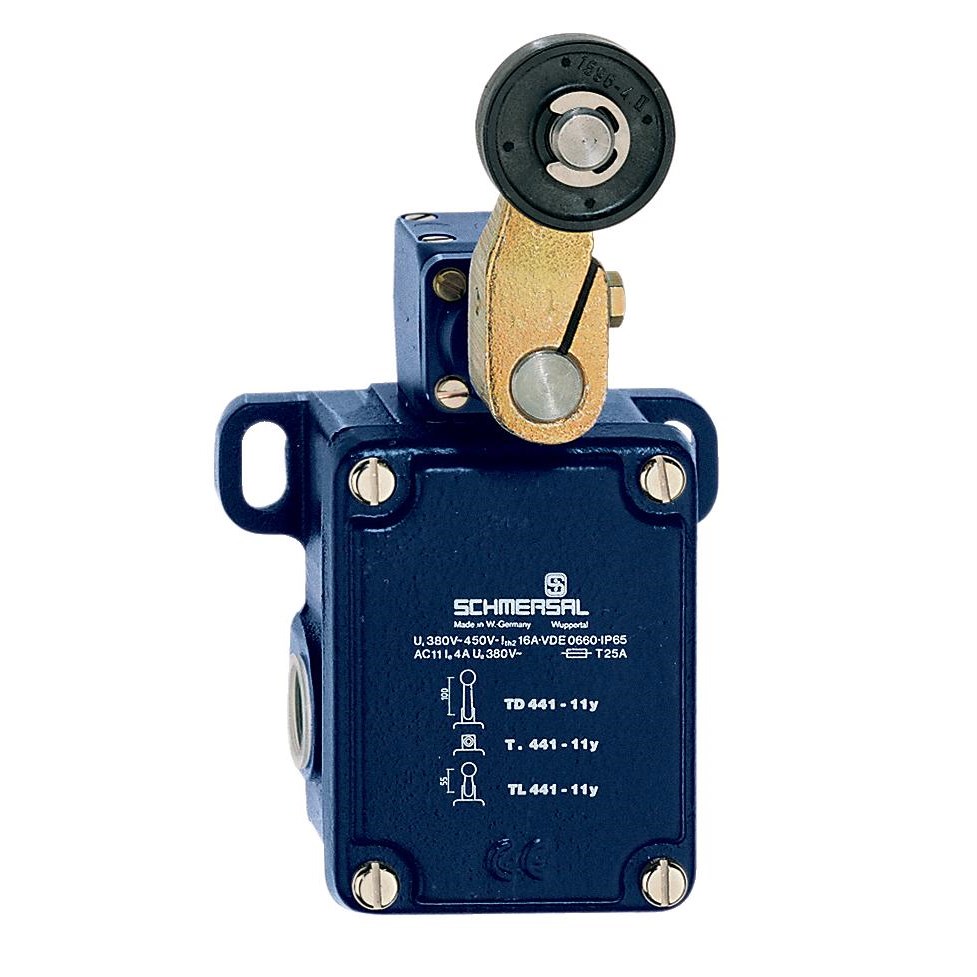

Schmersal 101099740 Position Switch Roller Lever 1NO-1NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101099740

  • Rated voltage of 400 VAC
  • IP65 protection for harsh environments
  • Durable grey cast iron housing
  • Slow action roller lever actuator
  • Complies with ENIEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441 roller lever L

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250 VAC 400V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
63mm
Height
192mm
Weight
1,845g
Width
106mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 200°C
