Actuator head can be repositioned in steps 4 x 90° Metal enclosure Continuous adjustment of lever position 360° Lever can be transposed by 180° 1 Contact 106 mm x 71 mm x 63 mm (basic component) Protection class IP65

Specifications

Product Type

Position Switch

Brand

Schmersal

Series

422

Rated Impulse Withstand Voltage (Uimp) 6kV	Rated Insulation Voltage (Ui) 400V	Switching Principle Slow action, double break
Utilization Category AC-15 400 VAC / 4 A	Contact Configuration 1 NC	Mechanical Life 10,000,000 operations
Thermal Test Current 16A

Cable Cross Section 1.5mm² to 2.5mm²	Cable Entry Screw connection; 2 x M20 x 1.5 mm² cable entries	Contact Material Silver
Housing Material Grey cast iron, galvanised; painted	Actuator / Operating Element Roller lever; plastic roller

Depth 164	Height 106	Weight 1.43kg
Width 63

IP Rating

IP65

Ambient Temperature

-30°C to 90°C

Standards and Approvals

CCC; DNV; EN IEC 60947-5-1

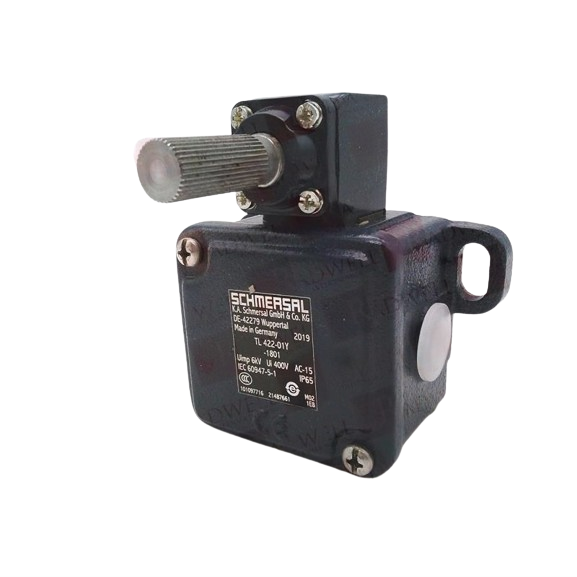

Schmersal 101097716 Medium-Duty Position Switch
