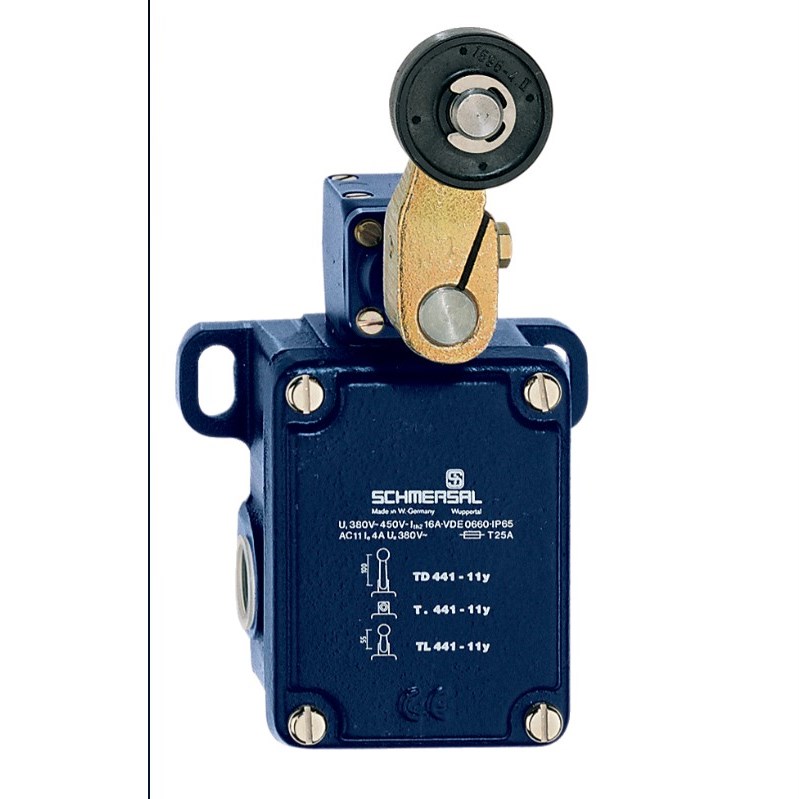

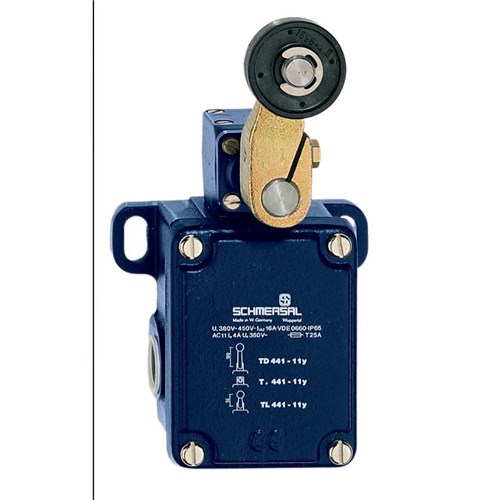

Schmersal 101096133 Medium-Duty Position Switch Roller Plunger Grey Cast Iron Galvanised

Product Code: 101096133

  • Rated for 16A current
  • IP65 protection rating
  • Roller plunger actuator
  • Durable cast iron housing
  • Complies with EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441 roller plunger R

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
250V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller plunger
Contact Material
AgSnO
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
63mm
Height
145mm
Weight
1,370g
Width
106mm

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C
