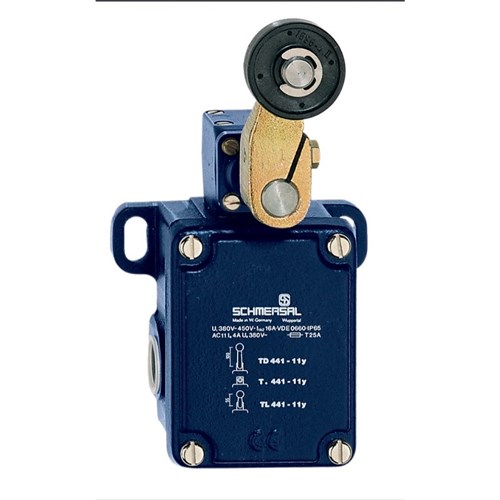

Schmersal 101095294 Medium-Duty Position Switch Roller Lever Grey Cast Iron Galvanised

Product Code: 101095294

  • Rated for 16A current capacity
  • Durable grey cast iron housing
  • High protection with IP65 rating
  • Mechanical switch with roller lever
  • Long life: 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441 roller lever L

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250 VAC 400V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller lever
Contact Material
AgSnO
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
63mm
Height
192mm
Weight
1,847g
Width
106mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 200°C

Documents

IPD Product Catalogue V17
