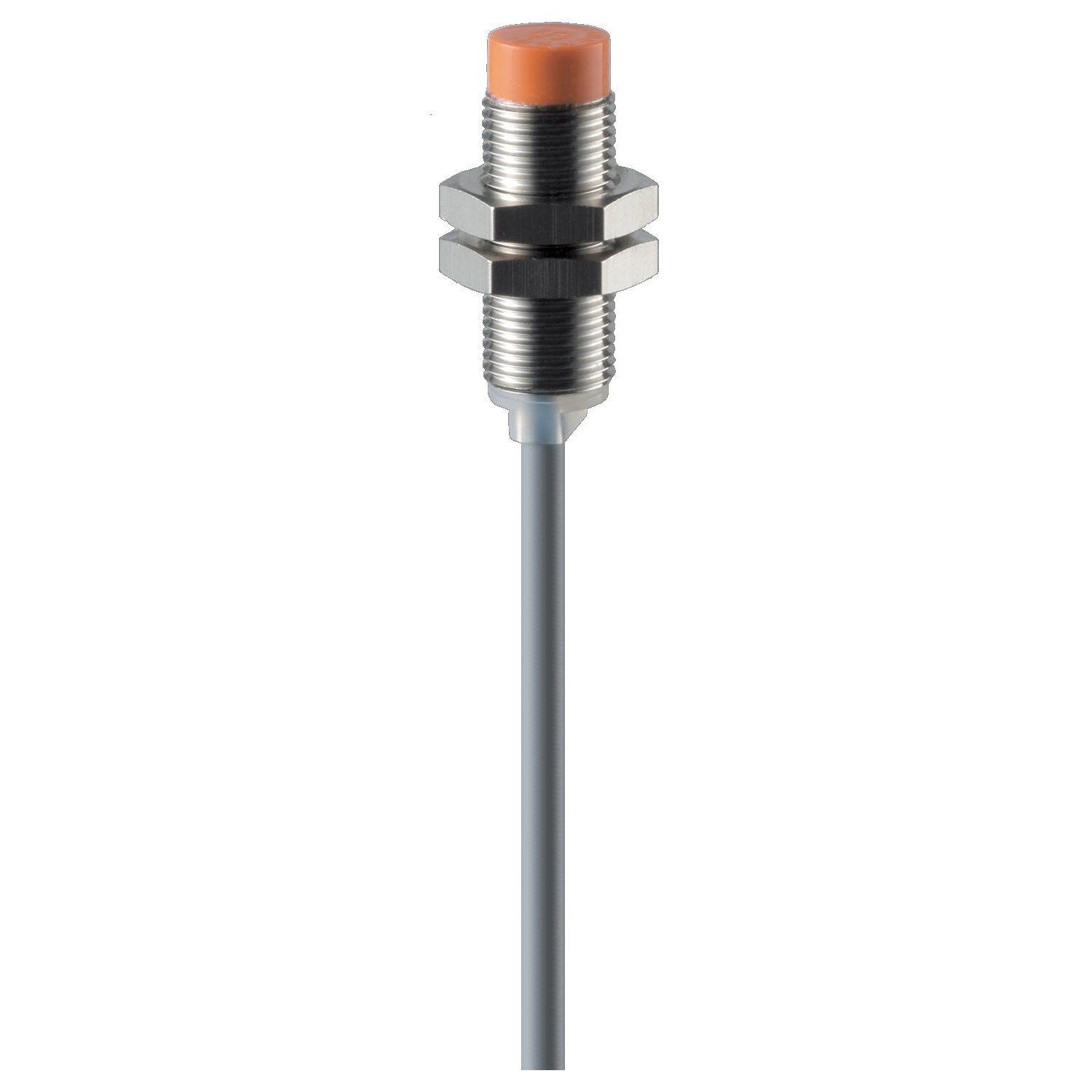

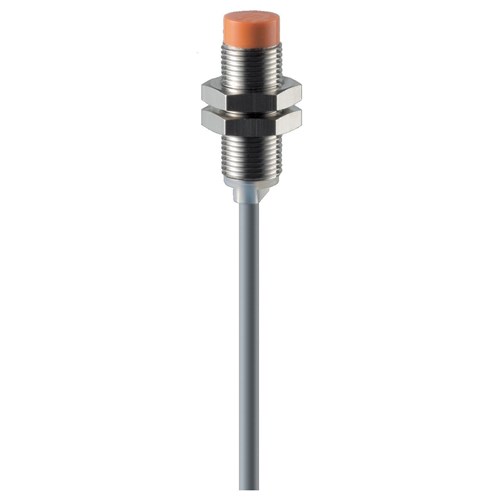

Schmersal 101094244 Inductive Proximity Switch 4mm NC 2m L Cable

Product Code: 101094244

  • Operates on 10-30 VDC, 200 mA
  • Durable brass housing, IP67 rated
  • Not flush mounting design
  • 2m cable connection included
  • Temp range: -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Inductive Proximity Switch
Brand
Schmersal
Series
IFL - M12

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
0
Switching Current
0.2A
Switching Voltage
10V to 30V DC
Type of Actuation
Inductive
Electrical Connection
Cable
Switching Distance
4mm

Mechanical

Material
Brass

Dimensions & Physical Data

Depth
31.5mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
