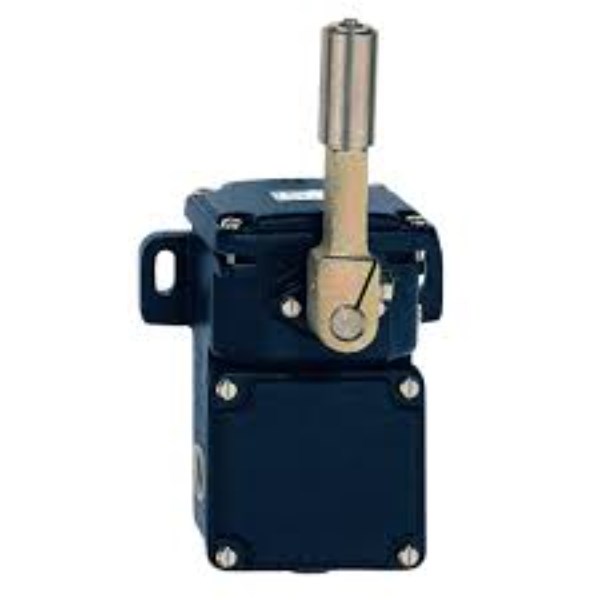

HEAVY DUTY POSITION SW 2NC 2NO IP65 SCHMERSAL M250-22Z-1224

Product Code: 101083514

  • IP67 rated for dust and water resistance
  • Complies with ENIEC 60947-5-1 standards
  • Snap action switching mechanism
  • Durable silver contact material
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position switch
Brand
Schmersal
Series
M. 250

Electrical

No. of Change-Over Contacts
2 separate contact bridgesSlow action, NC contact
No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current
4 A
Rated Voltage
400 VAC
Terminal Type
Screw connection

Mechanical

Contact Material
Silver
Housing Material
Grey cast iron,galvanized and painted

Dimensions & Physical Data

Depth
125 mm
Height
268 mm
Weight
4.405 Kg
Width
146 mm

Environmental

Operating Temperature
-30 ... +90 °C
IP Rating
IP65IP66IP67
