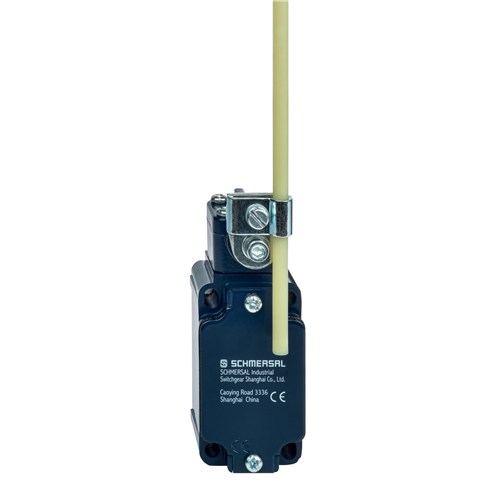

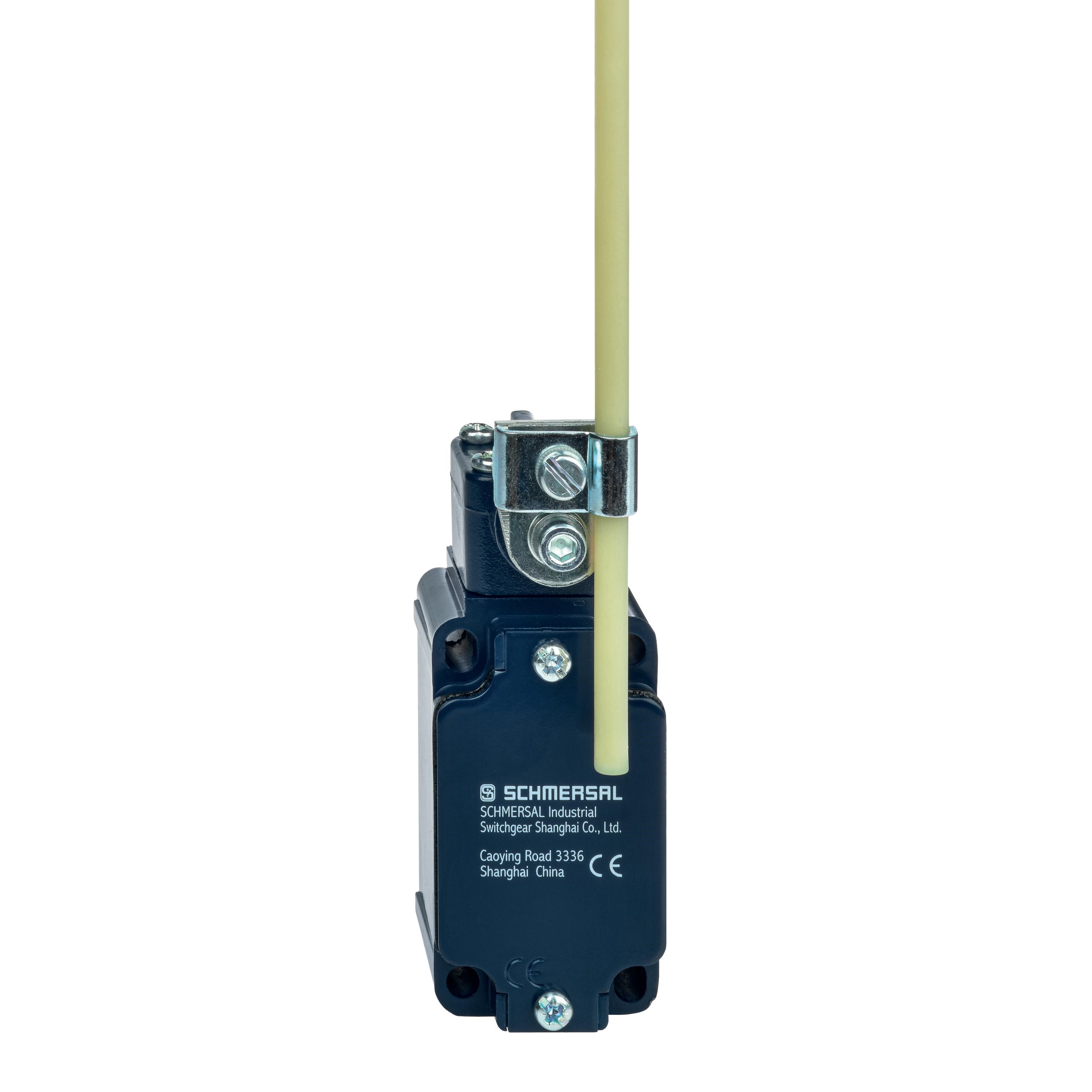

Schmersal 101082578 Position Switch with Safety Function Rod Lever 1NO Die Cast Light Alloy Silver Contact

Product Code: 101082578

  • Operates at 230 VAC or 24 VDC
  • Durable die-cast light alloy housing
  • IP67 protection for harsh environments
  • Complies with ENISO 13849-1 standards
  • Slow action switching with rod lever actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Position Switch with Safety Function
Brand SCHMERSAL
Actuating Element Rod Lever
Actuating Speed 2.5 m/s
Actuator Type Rod Lever
Cable Cross Section 0.75 sq-mm
Contact Configuration 1NO
Contact Material Silver
Degree of Protection IP67
Enclosure Coating Material Painted
Fuse Rating 6 A gG D-Fuse
Housing Material Die Cast Light Alloy
Mechanical Life 30000000 Operations
Number of Auxiliary Contacts 2
Rated Current 4 A
Rated Voltage 230 VAC, 24 VDC
Standards and Approvals ENISO 13849-1
Switching Type Slow Action

Description

<p>For professionals in the industrial and commercial sectors, selecting the right component for your application is crucial. This product, with its robust specifications, offers reliability and efficiency.</p><p>Operating at a rated voltage of 230 VAC or 24 VDC, this unit is designed to handle a current of up to 4 A. The housing material is made from die-cast light alloy, providing durability while maintaining a manageable weight. With an IP67 degree of protection, it ensures excellent resistance against dust and water ingress—ideal for harsh environments.</p><p>The product adheres to EN ISO 13849-1 standards and approvals, ensuring compliance with safety requirements in automation systems. Its contact configuration includes one normally open (1NO) contact alongside two auxiliary contacts for versatile connectivity options.</p><p>Featuring slow action switching type and a rod lever actuator type, this device supports reliable actuation with an actuating speed of up to 2.5 m/s. The contacts are crafted from silver, known for its superior conductivity and longevity under electrical load conditions.</p><p>A fuse rating of 6 A gG D-Fuse provides additional protection against overcurrent scenarios. For installation flexibility, it accommodates cable cross sections up to 0.75 sq-mm.</p><p>With mechanical life expectancy reaching an impressive 30 million operations, this product promises long-term performance even under demanding usage conditions.</p>
