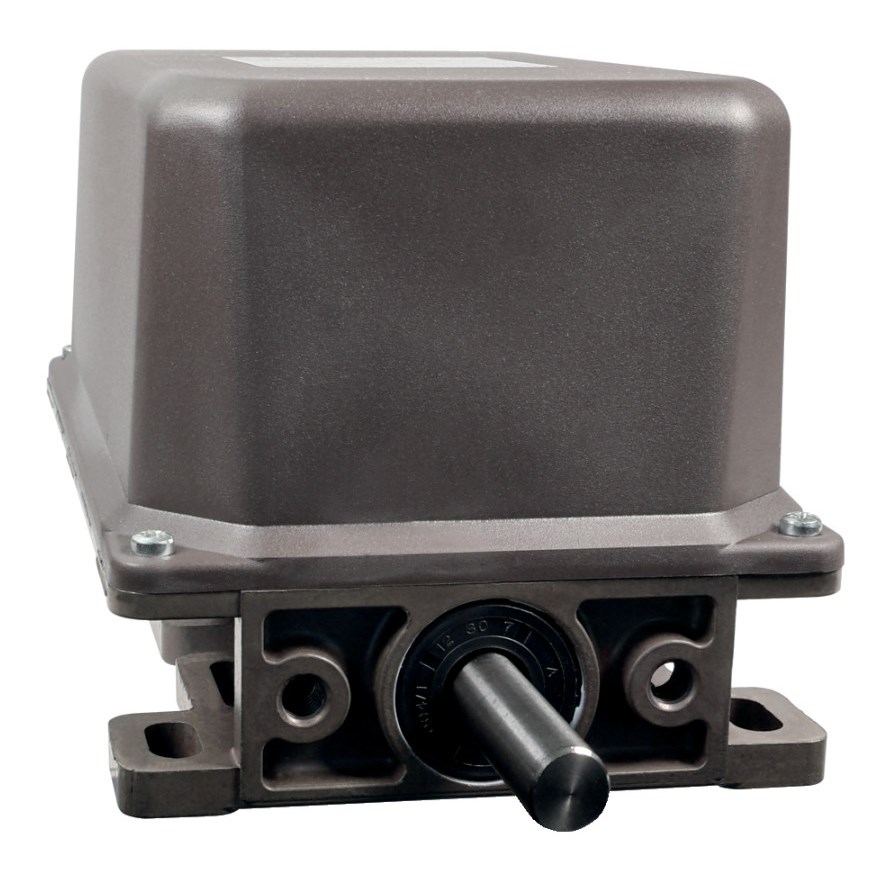

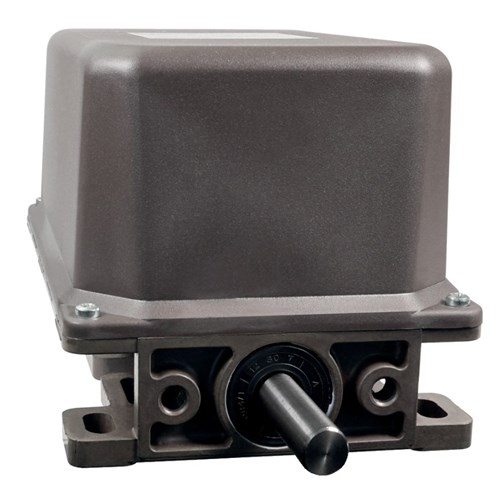

Schmersal 101063401 Gear Control Device

Product Code: 101063401

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
G150

Electrical

Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
250V
Contact Configuration
4 NC + 4 NO

Mechanical

Cable Cross Section
max. 2.5mm²
Cable Entry
Screw terminals; 2 x M20 x 1.5 mm² cable entries
Contact Material
silver
Housing Material
Light-alloy die-cast housing; impact-resistant thermoplastic cover
Actuator / Operating Element
Solid shaft

Dimensions & Physical Data

Depth
114
Height
120
Weight
1.475kg
Width
244

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
CCC; cULus; EN IEC 60947-5-1

Documents

IPD Product Catalogue V17
