Schmersal 101061315 Position Switch 120mm W Cast Iron

Product Code: 101061315

  • Durable cast iron housing
  • IP65-rated for dust & water resistance
  • Complies with CE and cULus standards
  • Compact size: 120mm W x 236mm H x 135mm D
  • Equipped with 3NO+3NC auxiliary contacts
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
130

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
500V
Switching Principle
Slow action
Utilization Category
AC-15 230 VAC / 10 A
Contact Configuration
3 NC + 3 NO
Mechanical Life
1,000,000 operations
Thermal Test Current
25A

Mechanical

Cable Cross Section
1.5mm² to 4mm²
Cable Entry
Screw connection; M25 cable entry
Contact Material
Silver
Housing Material
Cast iron, galvanised; painted

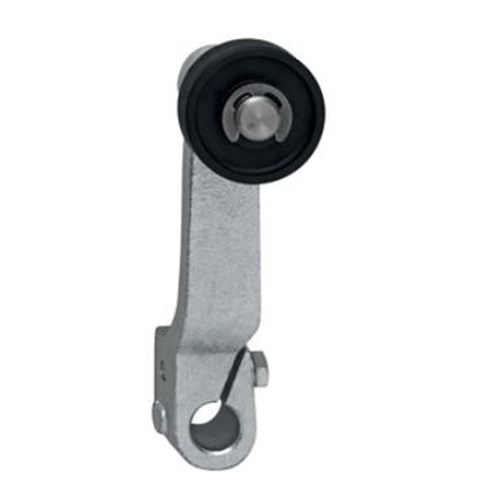

Actuator / Operating Element
Roller lever; plastic roller

Dimensions & Physical Data

Depth
123
Height
250
Weight
4.345kg
Width
158

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Safety, Standards & Compliance

Standards and Approvals
cULus; CCC; EN IEC 60947-5-1
