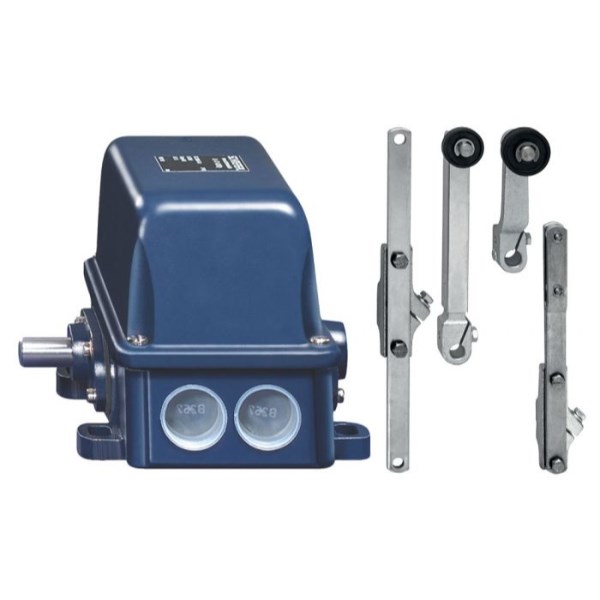

Schmersal 101061195 Position Switch 130mm W Cast Iron

Product Code: 101061195

  • Durable cast iron housing
  • High protection rating of IP65
  • Certified with CE and cULus approvals
  • Compact size: 130mm W x 194mm H x 123mm D
  • Features 2NO+4NC auxiliary contacts
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
471

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
500V
Switching Principle
Snap action
Utilization Category
AC-15 230 VAC / 10 A
Contact Configuration
2 switching elements; each 1 NO + 2 NC
Mechanical Life
30,000 operations
Thermal Test Current
25A

Mechanical

Cable Cross Section
1.5mm² to 4mm²
Cable Entry
Screw connection; M25 cable entry
Contact Material
Silver
Housing Material
Grey cast iron, galvanised; painted
Actuator / Operating Element
Pull lever

Dimensions & Physical Data

Depth
123
Height
250
Weight
4.855kg
Width
158

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Safety, Standards & Compliance

Standards and Approvals
CCC; cULus; EN IEC 60947-5-1
