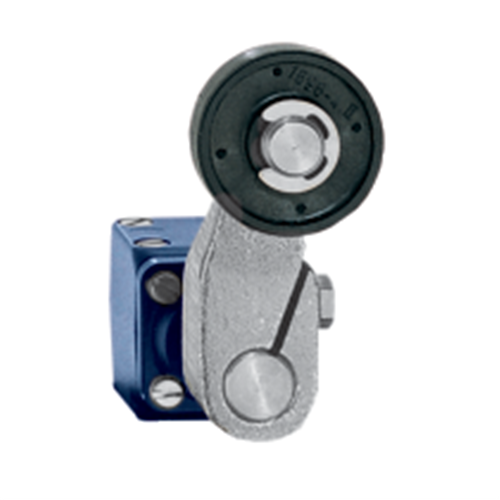

Schmersal 101059807 Position Switch

Product Code: 101059807

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
461

Electrical

Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
250V AC
Switching Principle
Snap action
Contact Configuration
2 NC + 2 NO
Mechanical Life
5,000,000 operations

Mechanical

Cable Cross Section
max. 2.5mm²
Cable Entry
Screw terminals; family normally 2 cable entries
Housing Material
Metal housing
Actuator / Operating Element
Rod lever

Dimensions & Physical Data

Depth
64
Height
155
Weight
2.25kg
Width
118

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
EN IEC 60947-5-1
