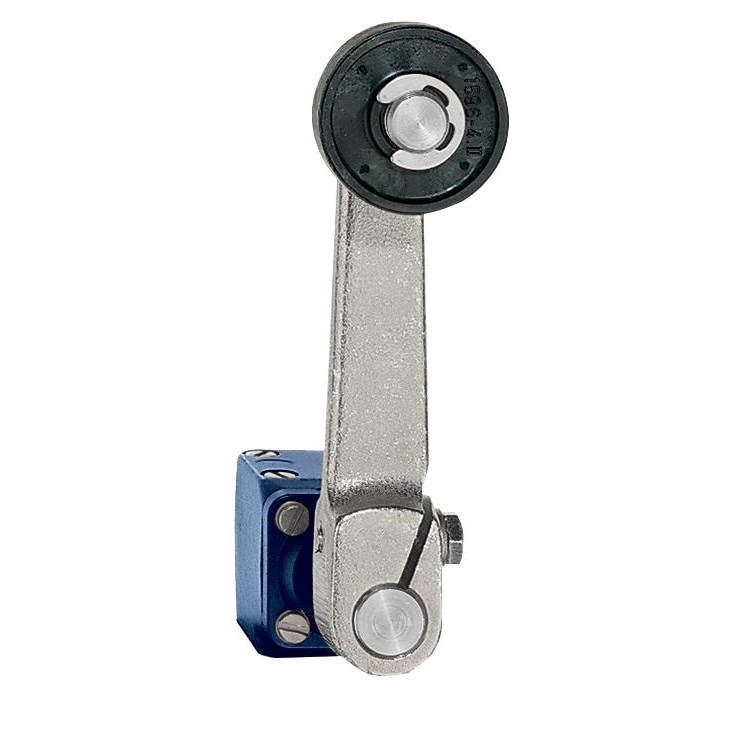

Schmersal 101059618 Medium-Duty Position Switch Roller Lever 1NO-1NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101059618

  • Rated for 230 VAC and 4 A
  • Durable grey cast iron housing
  • IP65 protection against dust and water
  • Snap action with roller lever actuator
  • Silver contacts ensure reliable performance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
461 roller lever D

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Insulation Voltage (Ui)
250V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
250V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
64mm
Height
293mm
Weight
2,285g
Width
118mm

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C
