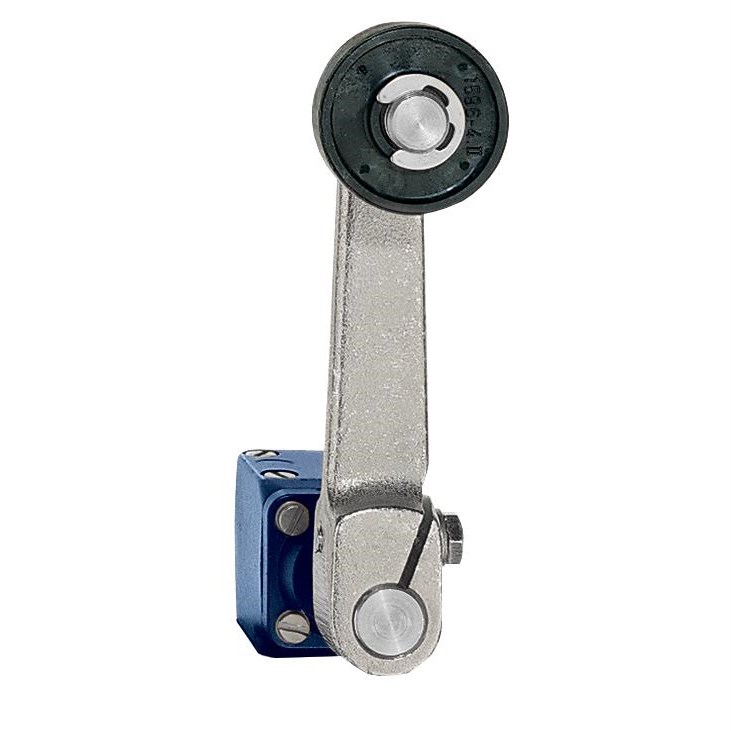

Schmersal 101059593 Medium-Duty Position Switch Roller Lever 1NO-1NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101059593

  • Rated for 400 VAC, 4 A
  • Durable grey cast iron housing
  • IP65 protection for harsh environments
  • Compliant with ENIEC 60947-5-1
  • Roller lever actuator with slow action
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
452 roller lever D

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
400V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
64mm
Height
265mm
Weight
2,035g
Width
118mm

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Documents

IPD Product Catalogue V17
