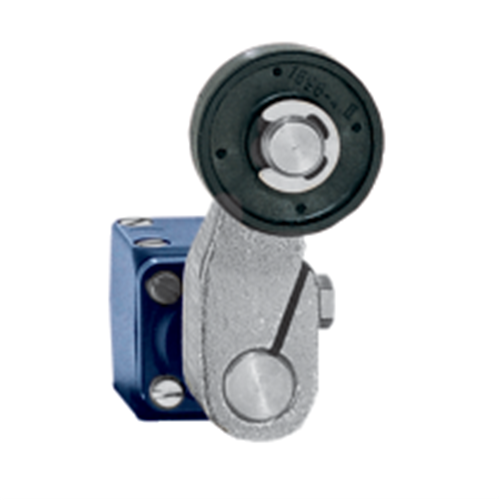

Schmersal 101059442 Position Switch 2NO-2NC 1NO-3NC 3NO-1NC 3NO-3NC 64mmW Cast Iron

Product Code: 101059442

  • Screw connection type for secure installation
  • Durable cast iron housing
  • IP65 protection against dust and water
  • CE certified for quality assurance
  • Versatile contact configurations available
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
461

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
400V
Switching Principle
Slow action, double break
Utilization Category
AC-15 400 VAC / 4 A
Contact Configuration
2 NC + 2 NO
Thermal Test Current
16A

Mechanical

Cable Entry
Threaded cable connection
Contact Material
Silver
Housing Material
Grey cast iron, galvanised; painted
Actuator / Operating Element
Roller lever

Dimensions & Physical Data

Depth
248
Height
118
Width
64

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 120°C

Safety, Standards & Compliance

Standards and Approvals
DNV; EN IEC 60947-5-1

Documents

IPD Product Catalogue V17
