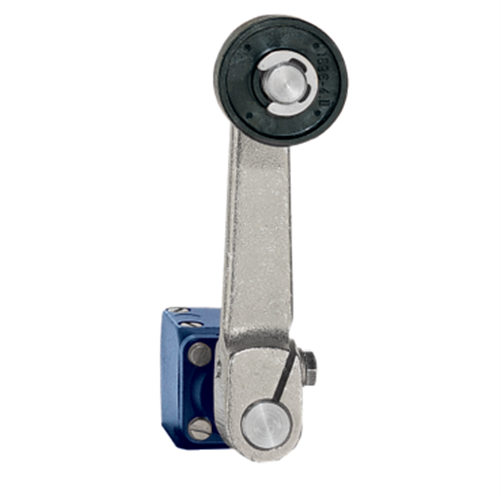

Schmersal 101059429 Position Switch 2NO-2NC 1NO-3NC 3NO-1NC 3NO-3NC 64mmW Cast Iron

Product Code: 101059429

  • Screw connection for secure installation
  • Durable cast iron housing
  • IP65 rated for dust and water protection
  • CE certified for quality assurance
  • Flexible contact configurations available
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
461

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
500V
Switching Principle
Slow action, double break
Utilization Category
AC-15 400 VAC / 4 A
Contact Configuration
3 NC
Mechanical Life
10,000,000 operations
Thermal Test Current
16A

Mechanical

Cable Cross Section
1.5mm² to 2.5mm²
Cable Entry
Screw terminals; 2 x M20 x 1.5 mm² cable entries
Contact Material
Silver
Housing Material
Grey cast iron, galvanised; painted
Actuator / Operating Element
Rotary roller lever; plastic roller

Dimensions & Physical Data

Depth
248
Height
118
Weight
2.431kg
Width
64

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Safety, Standards & Compliance

Standards and Approvals
DNV; EN IEC 60947-5-1

Documents

IPD Product Catalogue V17
