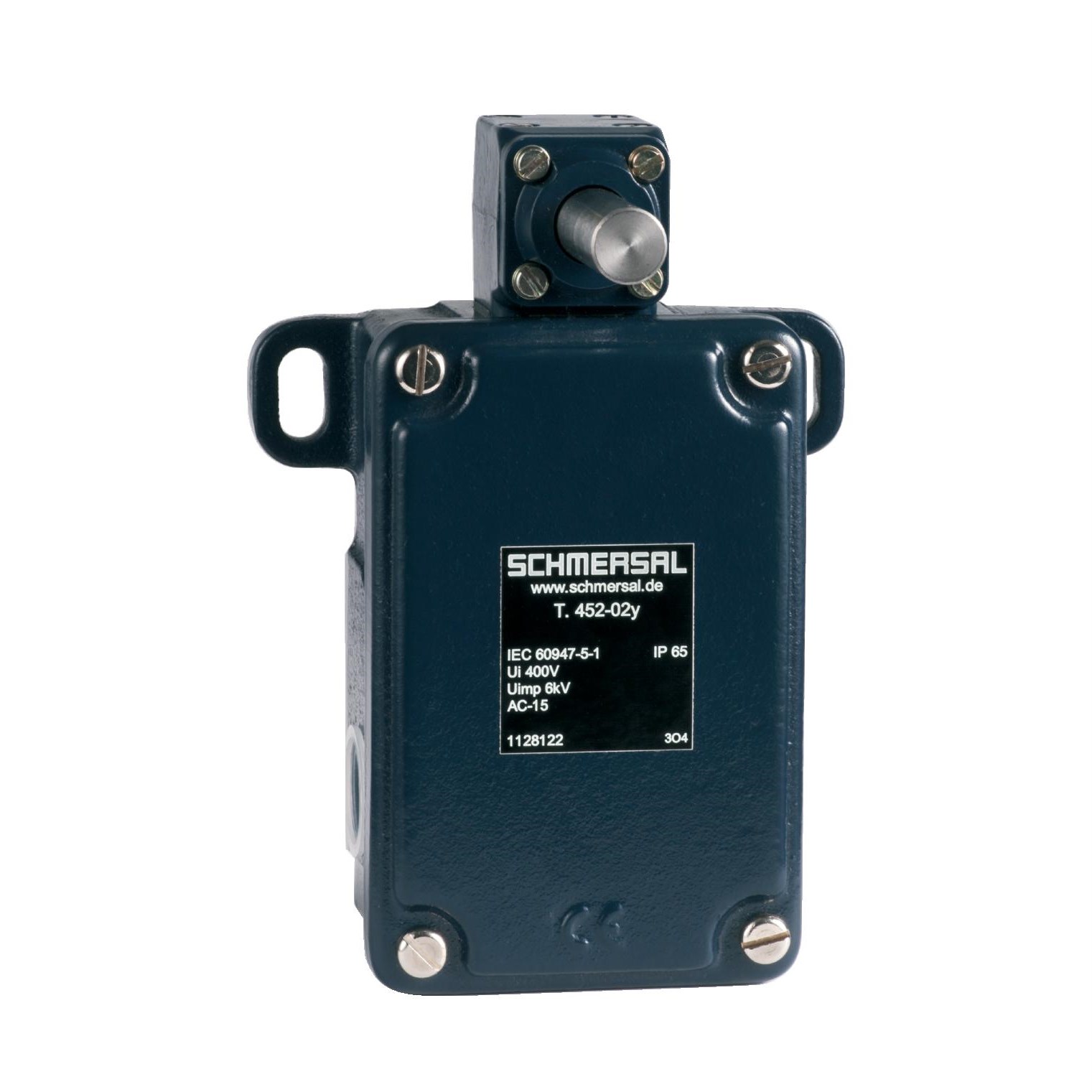

Schmersal 101059396 Medium-Duty Position Switch Roller Lever NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101059396

  • Rated Voltage: 400 VAC, Current: 4 A
  • Durable grey cast iron housing
  • IP65 protection against dust and water
  • Roller lever actuator for precise control
  • Complies with ENIEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
452 roller lever L

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
400V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
64mm
Height
220mm
Weight
1,970g
Width
118mm

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C
