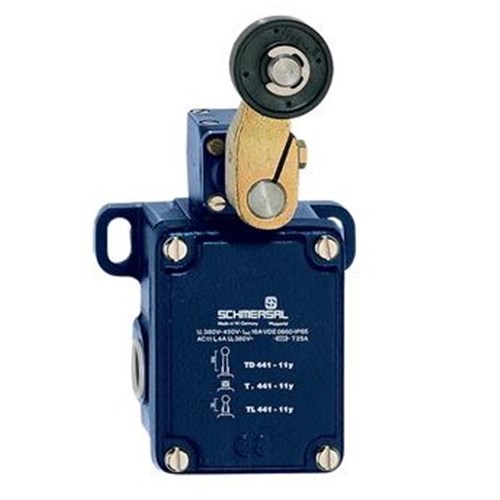

Schmersal 101059312 Position Switch 1NO-1NC 63mm W Cast Iron

Product Code: 101059312

  • Rated for 220 VAC operations
  • Durable cast iron housing
  • IP65 protection against dust and water
  • Screw connection type for secure setup
  • Complies with CE standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441

Electrical

Switching Principle
Slow action / double break
Contact Configuration
1 NC + 1 NO
Mechanical Life
10,000,000 operations

Mechanical

Cable Cross Section
max. 2.5mm²
Cable Entry
Screw terminals; family generally uses 2 cable entries
Housing Material
Metal housing
Actuator / Operating Element
Roller lever L

Dimensions & Physical Data

Depth
63
Height
99
Width
106

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
EN IEC 60947-5-1
