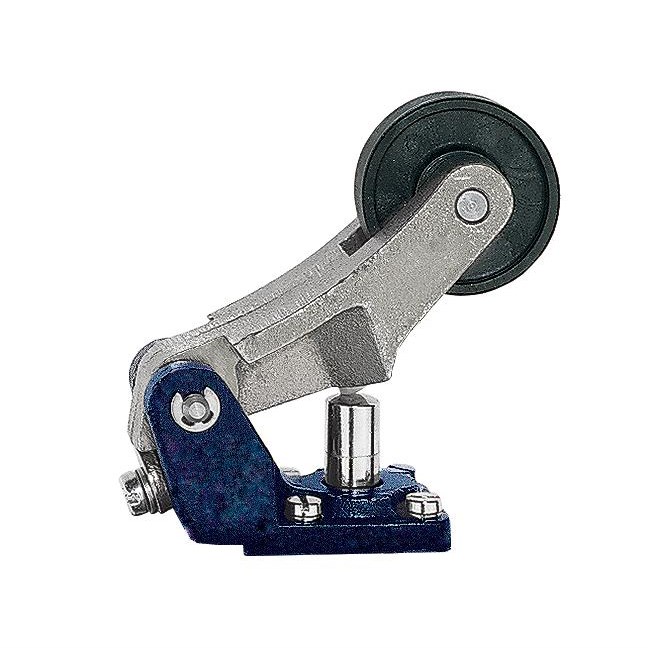

Schmersal 101059169 Medium-Duty Position Switch Offset Roller Lever 1NO-1NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101059169

  • Rated for 230 VAC, 4 A
  • Durable grey cast iron housing
  • IP65 protection rating
  • Snap action switching with offset roller lever
  • Compliant with ENIEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
461 offset roller lever J

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Insulation Voltage (Ui)
250V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Offset roller lever
Contact Material
Silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
64mm
Height
235mm
Weight
2,240g
Width
118mm

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Documents

IPD Product Catalogue V17
