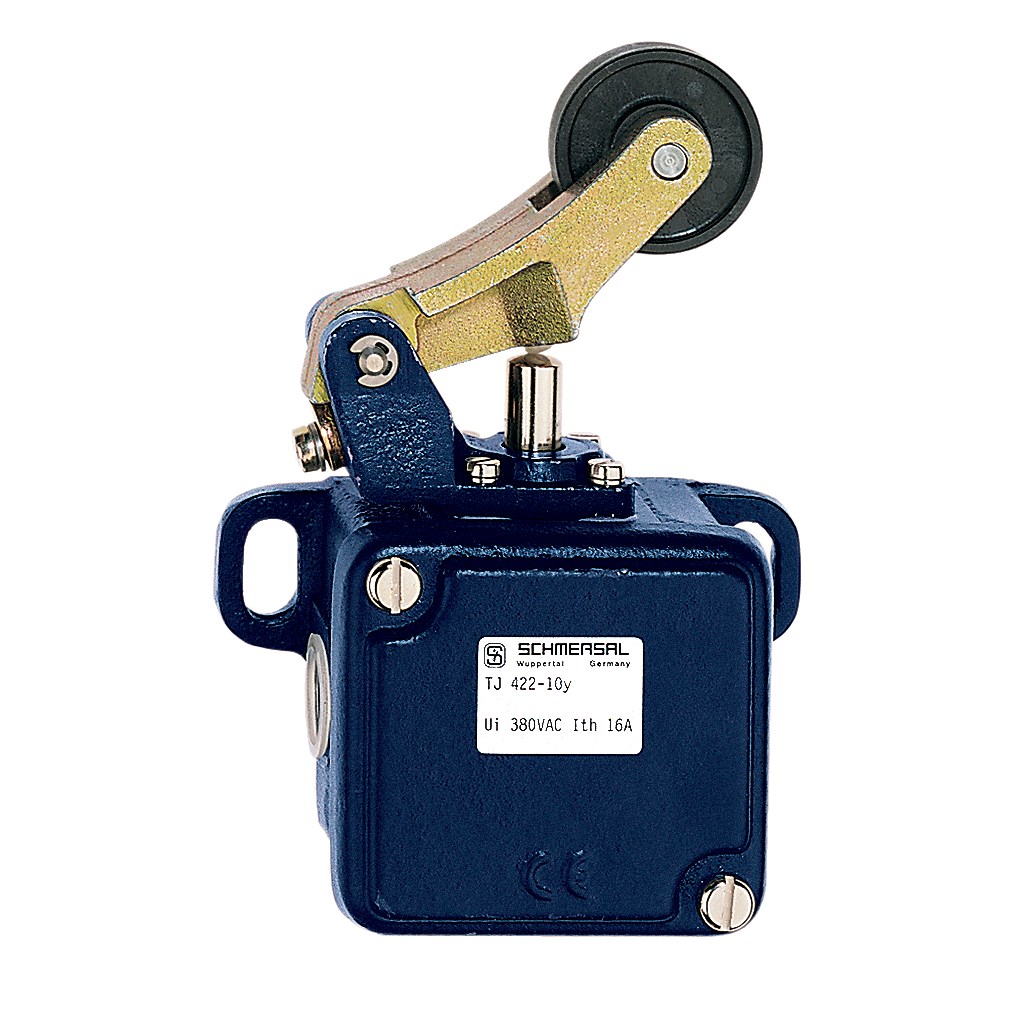

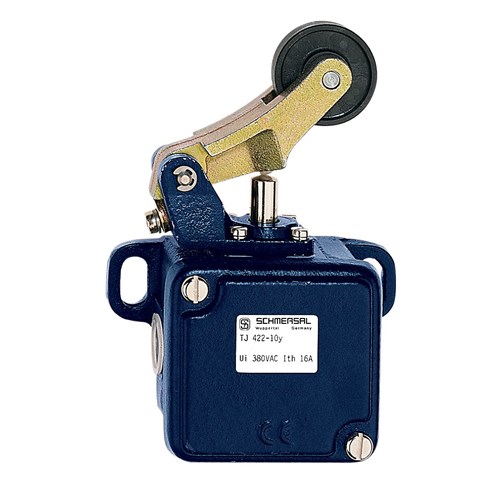

Schmersal 101059080 Position Switch

Product Code: 101059080

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
422

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
400V
Switching Principle
Slow action
Utilization Category
AC-15 400 V / 4 A
Contact Configuration
1 NC
Mechanical Life
10,000,000 operations
Thermal Test Current
16A

Mechanical

Cable Entry
Screw terminals; family cable-entry configuration
Housing Material
Grey cast iron, galvanised and painted
Actuator / Operating Element
Offset roller lever; brass roller

Dimensions & Physical Data

Depth
151
Height
106
Weight
1.27kg
Width
63

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 120°C

Safety, Standards & Compliance

Standards and Approvals
CCC; DNV

Documents

IPD Product Catalogue V17
