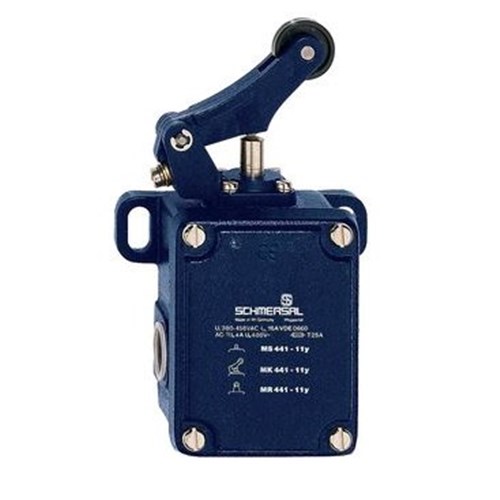

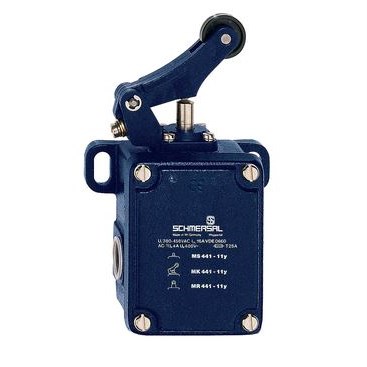

Schmersal 101058948 Position Switch Grey Cast Iron Galvanized

Product Code: 101058948

  • Durable grey cast iron, galvanized housing
  • IP65 rated for dust and water protection
  • Complies with ENIEC 60947-5-1 standards
  • Operates at 1 mm/min actuating speed
  • Long mechanical life of 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441 offset roller lever K

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Offset roller lever
Contact Material
Silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
63mm
Height
173mm
Weight
1,534g
Width
106mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 200°C
