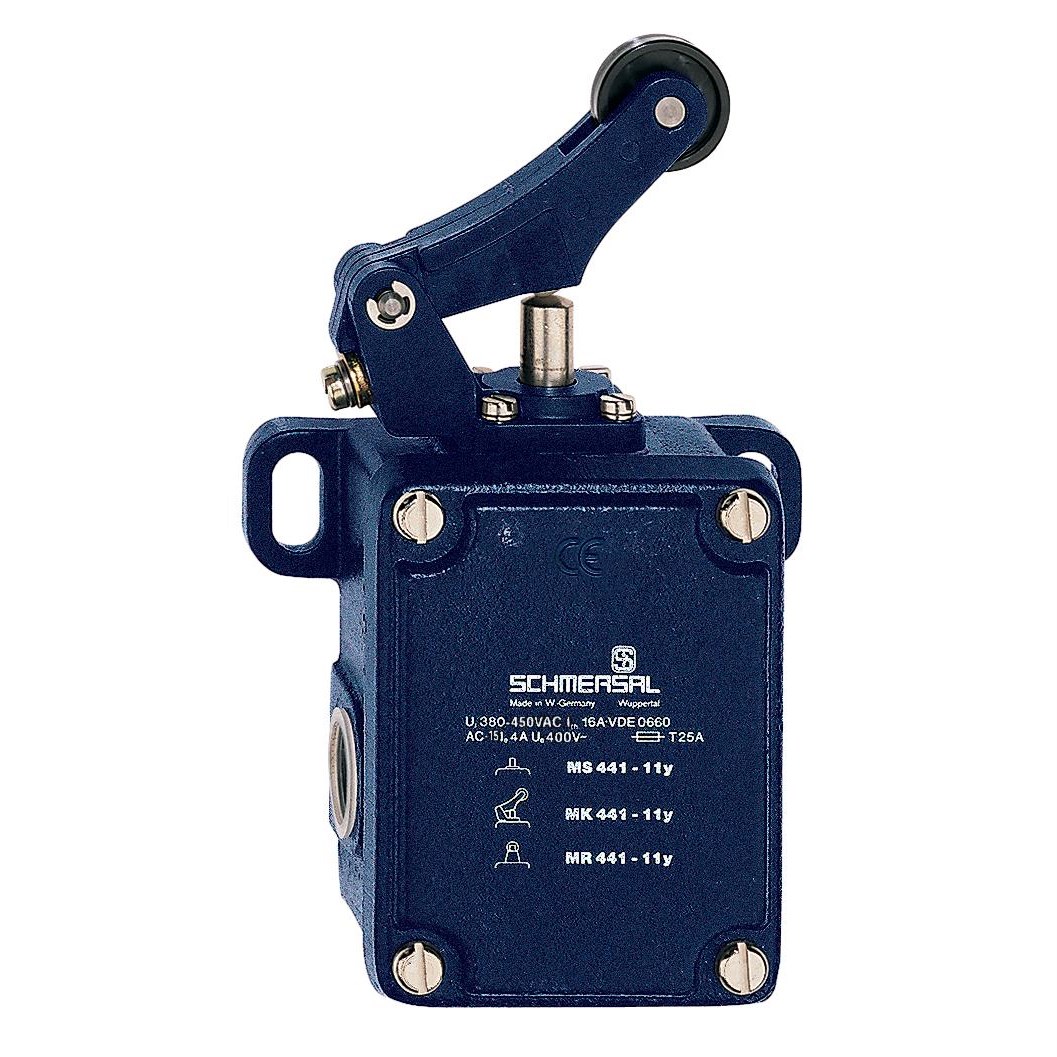

Schmersal 101058945 Medium-Duty Position Switch Offset Roller Lever 1NO-1NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101058945

  • Rated for 250 VAC and 4 A
  • Durable grey cast iron housing
  • IP65 protection against dust and water
  • Snap action with offset roller lever
  • Long life: 5 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441 offset roller lever K

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
250V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Offset roller lever
Contact Material
Silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
63mm
Height
173mm
Weight
1,463g
Width
106mm

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Documents

IPD Product Catalogue V17
