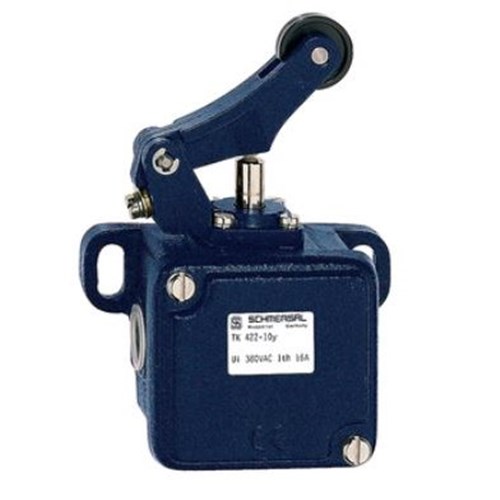

Schmersal 101058890 Position Switch 1NC 63mm W Cast Iron

Product Code: 101058890

  • Durable cast iron housing
  • IP65 protection rating
  • CE approved for safety
  • Compact size: 63x71x106 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
422

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
500V
Switching Principle
Slow action, double break
Utilization Category
AC-15 400 VAC / 4 A
Contact Configuration
1 NC
Mechanical Life
10,000,000 operations
Thermal Test Current
16A

Mechanical

Cable Cross Section
1.5mm² to 2.5mm²
Cable Entry
Screw connection; 2 x M20 x 1.5 mm² cable entries
Contact Material
Silver
Housing Material
Grey cast iron, galvanised; painted
Actuator / Operating Element
Offset roller lever; plastic roller

Dimensions & Physical Data

Depth
145
Height
106
Weight
1.01kg
Width
63

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Safety, Standards & Compliance

Standards and Approvals
CCC; DNV; EN IEC 60947-5-1
