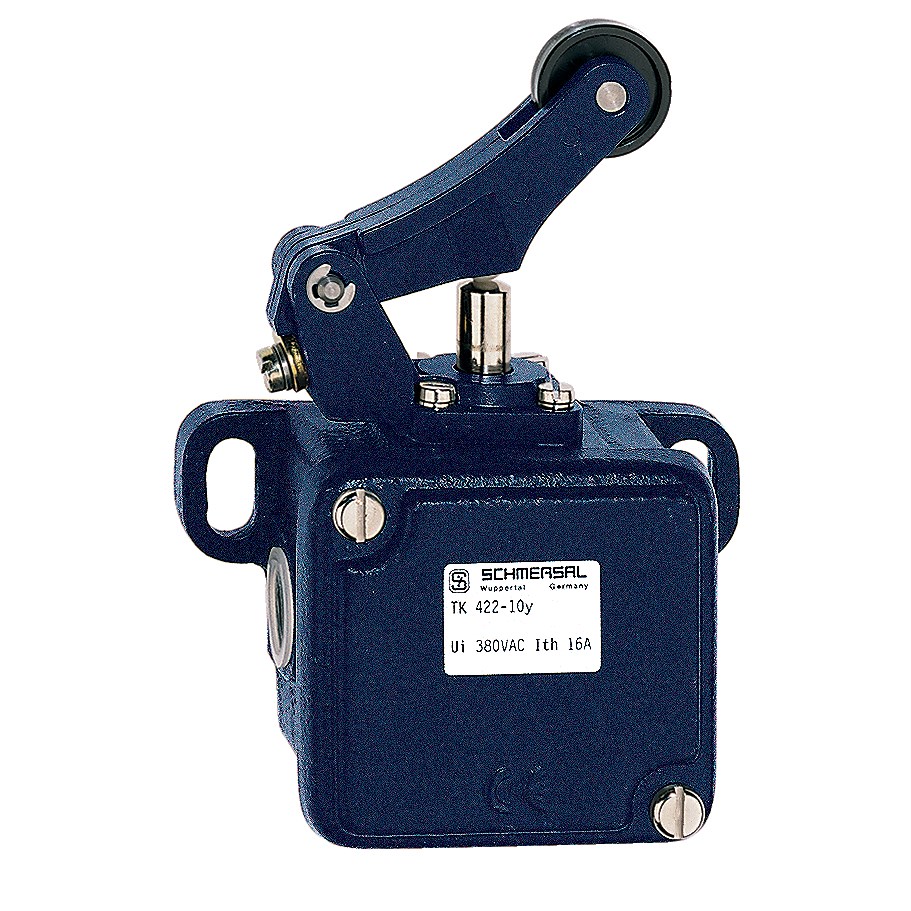

Schmersal 101058878 Position Switch 1NO

Product Code: 101058878

  • 1 Normally Open contact configuration
  • Durable cast iron housing
  • IP65 protection rating
  • CE certified for safety standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
422

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
500V
Switching Principle
Slow action
Contact Configuration
1 NO
Mechanical Life
10,000,000 operations
Thermal Test Current
16A

Mechanical

Cable Entry
Screw terminals; family cable-entry configuration
Housing Material
Grey cast iron, galvanised; painted
Actuator / Operating Element
Offset roller lever; plastic roller

Dimensions & Physical Data

Depth
145
Height
106
Weight
0.995kg
Width
63

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Safety, Standards & Compliance

Standards and Approvals
CCC; DNV

Documents

IPD Product Catalogue V17
