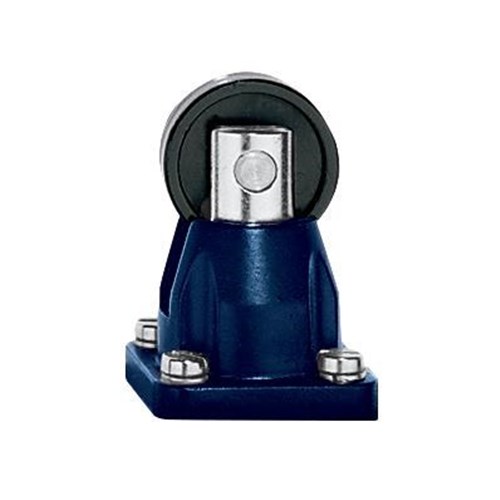

Schmersal 101058853 Medium-Duty Position Switch Roller Plunger 1NO-1NC Grey Cast Iron Galvanized Silver Contact

Product Code: 101058853

  • 230 VAC, 4 A rated for efficient performance
  • Durable grey cast iron housing, IP65 protection
  • Complies with ENIEC 60947-5-1 standards
  • Snap action switch with roller plunger actuator
  • Long mechanical life of 5 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
461 roller plunger R

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Insulation Voltage (Ui)
250V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller plunger
Contact Material
Silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
64mm
Height
201mm
Weight
1,955g
Width
118mm

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C
