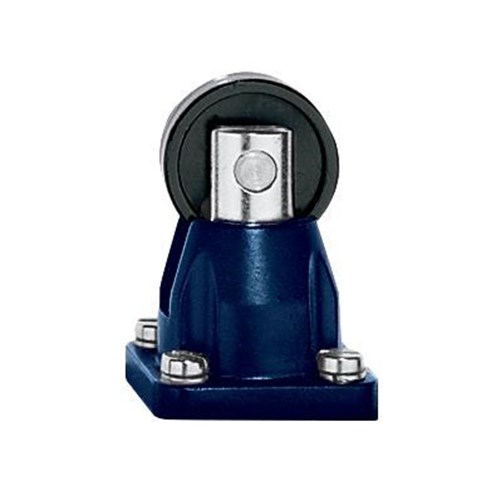

Schmersal 101058790 Medium-Duty Position Switch Roller Plunger 1NO Grey Cast Iron Galvanized Silver Contact

Product Code: 101058790

  • Rated for 400 VAC and 4 A
  • Durable grey cast iron housing
  • IP65 protection against dust and water
  • Complies with ENIEC 60947-5-1 standards
  • Roller plunger actuator for precise control
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
452 roller plunger R

Electrical

No. of N/O Contacts
2
Rated Insulation Voltage (Ui)
400V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller plunger
Contact Material
Silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
64mm
Height
173mm
Weight
1,600g
Width
118mm

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Documents

IPD Product Catalogue V17
