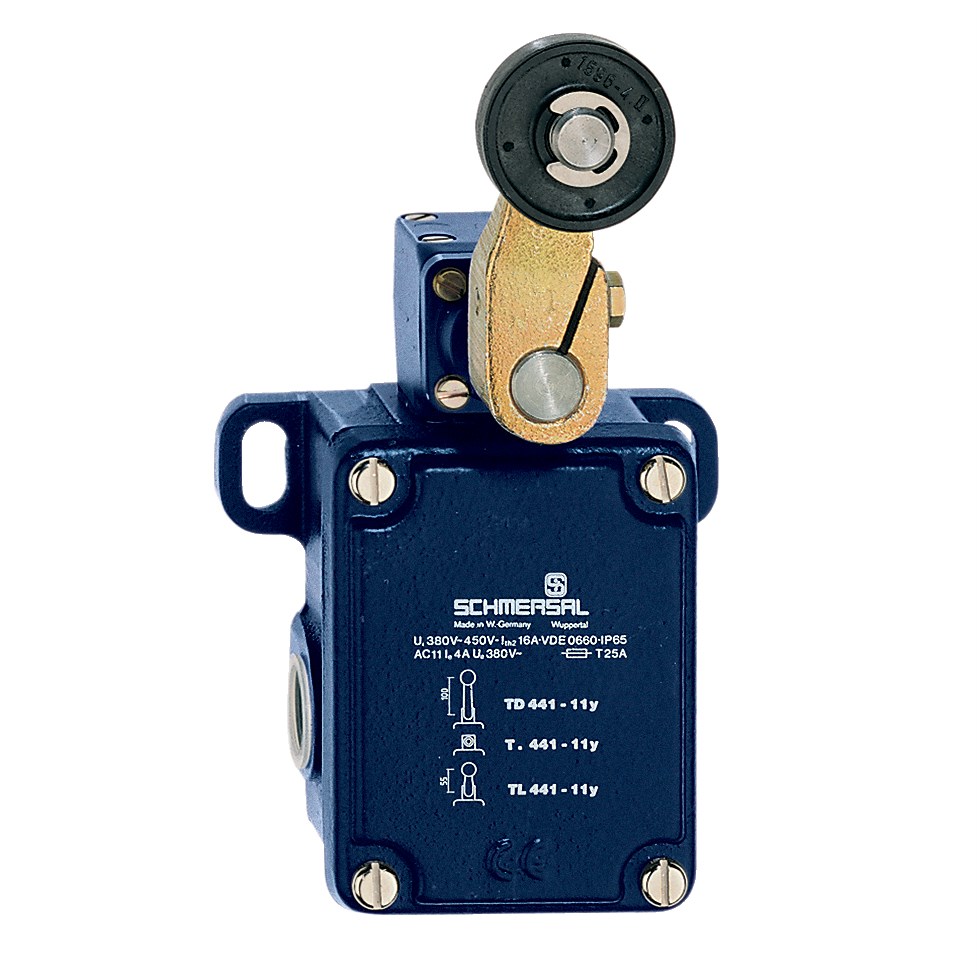

Schmersal 101058750 Position Switch

Product Code: 101058750

  • Long-lasting with 5 million cycles
  • Robust IP65 protection rating
  • Operates in -30 to 90°C range
  • Precise actuation at 1 mm/min
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441

Electrical

Switching Principle
Slow action / double break
Contact Configuration
1 NC + 1 NO
Mechanical Life
10,000,000 operations

Mechanical

Cable Cross Section
max. 2.5mm²
Cable Entry
Screw terminals; family generally uses 2 cable entries
Housing Material
Metal housing
Actuator / Operating Element
Roller plunger

Dimensions & Physical Data

Depth
63
Height
99
Width
106

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
EN IEC 60947-5-1

Documents

IPD Product Catalogue V17
