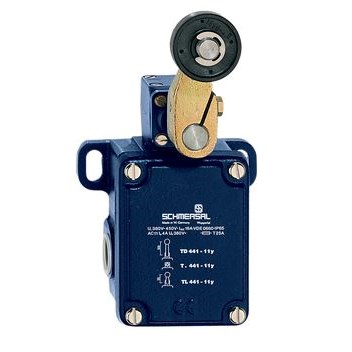

Schmersal 101058738 Position Switch

Product Code: 101058738

  • Long-lasting with 5 million mechanical cycles
  • High protection rating of IP65
  • Operates in temperatures from -30 to 90°C
  • Precise actuation speed at 1 mm/min
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
400V
Switching Principle
Slow action
Utilization Category
AC-15 400 V / 4 A
Contact Configuration
1 NC + 1 NO
Mechanical Life
10,000,000 operations
Thermal Test Current
16A

Mechanical

Cable Cross Section
max. 2.5mm²
Cable Entry
Screw terminals; family generally uses 2 cable entries
Housing Material
Grey cast iron, galvanised; painted
Actuator / Operating Element
Roller plunger; brass roller

Dimensions & Physical Data

Depth
145
Height
106
Weight
1.478kg
Width
63

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 120°C

Safety, Standards & Compliance

Standards and Approvals
CCC; DNV
