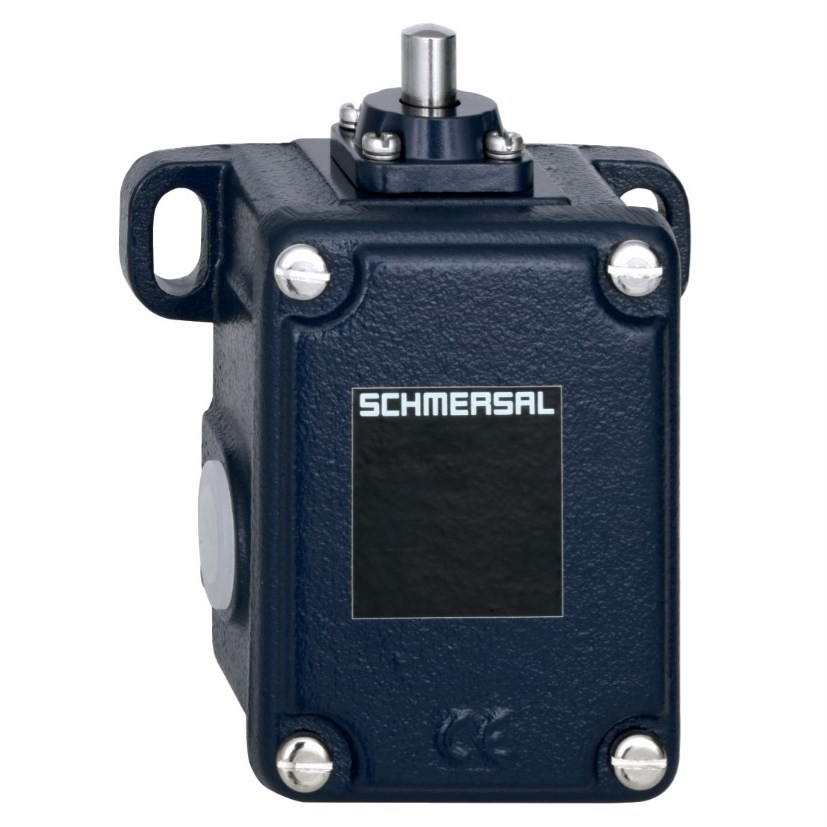

Schmersal 101058383 Position Switch Plunger Cast Iron Galvanized

Product Code: 101058383

  • Durable cast iron, galvanized housing
  • IP65 protection for harsh environments
  • Complies with ENIEC 60947-5-1 standards
  • Plunger actuator with slow speed operation
  • Long mechanical life: 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441 plunger S

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Plunger
Contact Material
Silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
63mm
Height
125mm
Weight
1,232g
Width
106mm

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 200°C

Documents

IPD Product Catalogue V17
