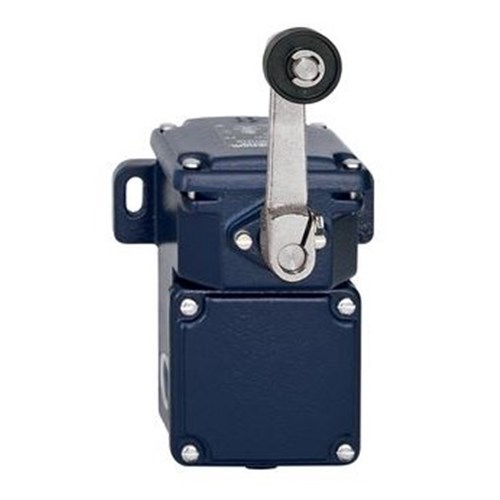

Schmersal 101058138 Position Switch 1NO-1NC Cast Iron Galvanised Chrome Painted

Product Code: 101058138

  • Durable cast iron housing
  • High protection rating of IP67
  • Complies with IEC/EN60947-5-1 standards
  • 1NO+1NC contact configuration
  • Long mechanical life: 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
250 roller lever D

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
400V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller lever
Contact Material
Gold-plated silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
125mm
Height
257mm
Weight
4,348g
Width
146mm

Environmental

IP Rating
IP67
Ambient Temperature
-30°C to 90°C

Documents

IPD Product Catalogue V17
