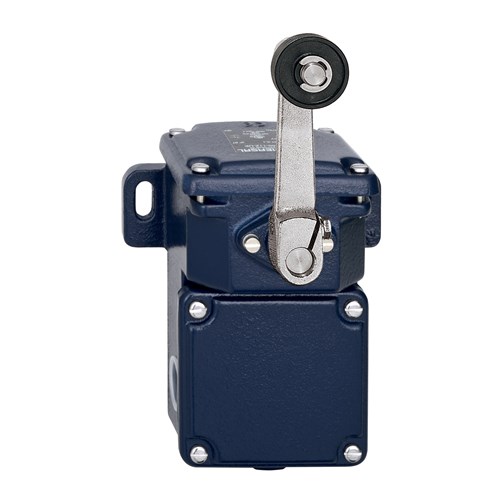

Schmersal 101058108 Position Switch Gold Plated Silver Contact

Product Code: 101058108

  • Durable with IP65, IP66, IP67 protection
  • Complies with ENIEC 60947-5-1 standards
  • Features snap action switching
  • Gold plated silver contacts for reliability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
250 roller lever D

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Insulation Voltage (Ui)
250V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller lever
Contact Material
Gold-plated silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
125mm
Height
257mm
Weight
3,970g
Width
146mm

Environmental

IP Rating
IP67
Ambient Temperature
-30°C to 90°C
