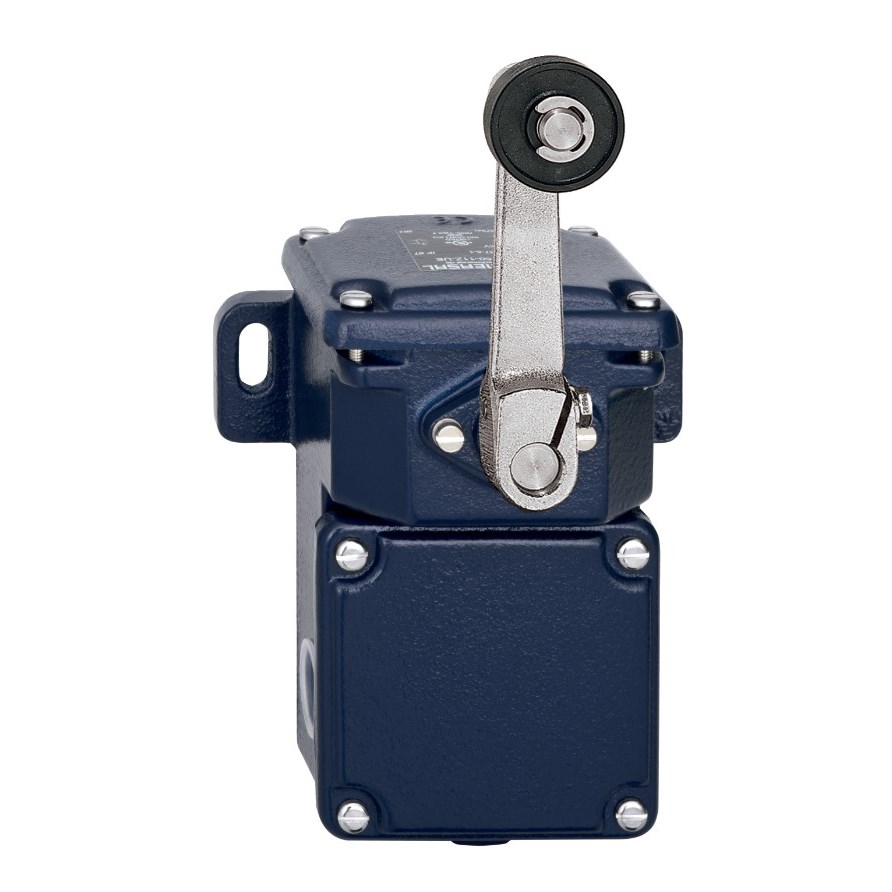

Schmersal 101057989 Position Switch Grey Cast Iron Galvanized Gold Plated Silver Contact

Product Code: 101057989

  • Rated for 400 VAC and 4 A
  • Durable grey cast iron housing
  • High protection: IP65, IP66, IP67
  • Gold plated silver contacts
  • Long life: 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
250 roller lever D

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
400V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller lever
Contact Material
Gold-plated silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
125mm
Height
257mm
Weight
3,885g
Width
146mm

Environmental

IP Rating
IP67
Ambient Temperature
-30°C to 90°C
