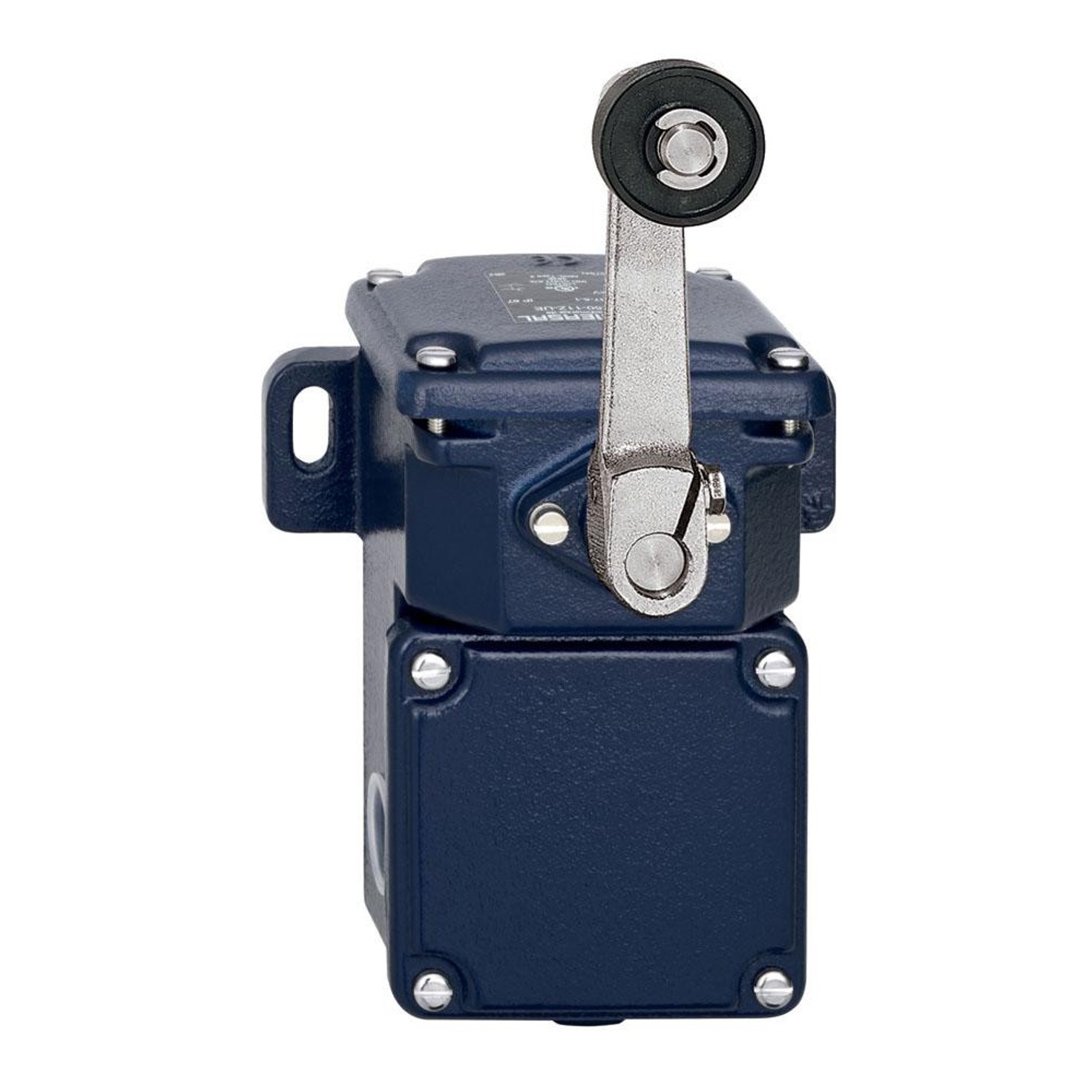

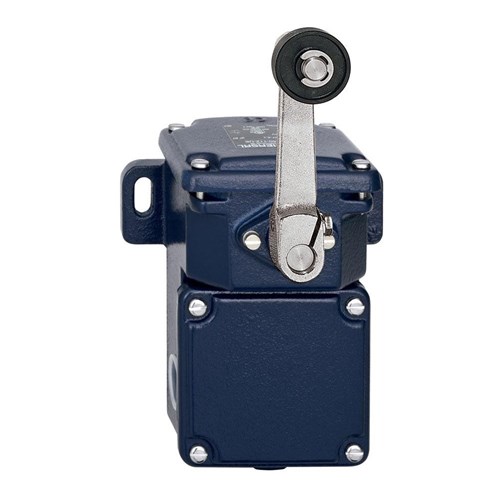

Schmersal 101057983 Position Switch 2NC Cast Iron Galvanised Chrome Painted

Product Code: 101057983

  • Durable cast iron housing
  • IP67 protection for harsh environments
  • Complies with IEC/EN60947-5-1 standards
  • 2NC contact configuration
  • High mechanical life: 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
250

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
400V
Switching Principle
Slow action
Utilization Category
AC-15 400 V / 4 A
Contact Configuration
2 NO
Thermal Test Current
16A

Mechanical

Housing Material
Grey cast iron, galvanised; painted
Actuator / Operating Element
Roller lever

Dimensions & Physical Data

Depth
257
Height
146
Weight
3.915kg
Width
125

Environmental

IP Rating
IP67
Ambient Temperature
-30°C to 90°C

Safety, Standards & Compliance

Standards and Approvals
CCC; cULus

Documents

IPD Product Catalogue V17
