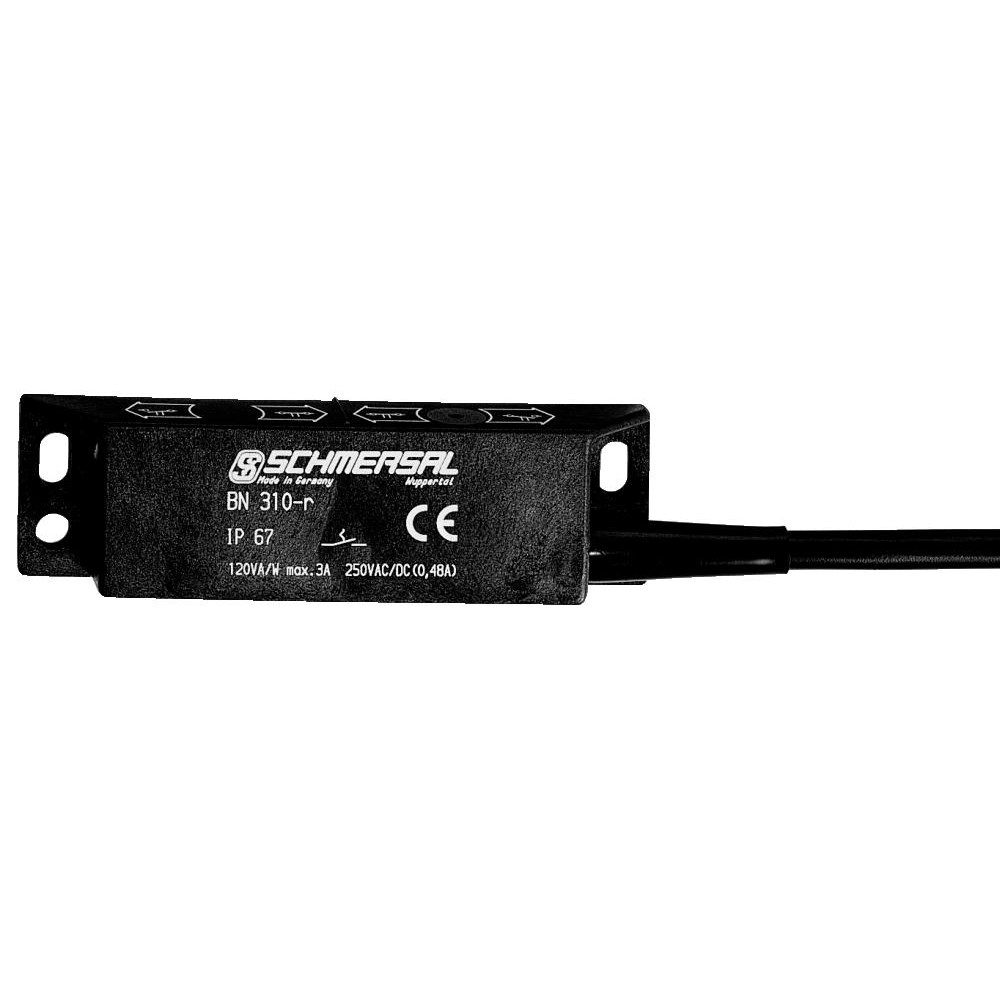

Schmersal 101057185 Magnetic Reed Switch 4m L Cable 3A BP 10 S

Product Code: 101057185

  • Rated current of 3 A
  • IP67 protection for durability
  • Operates in -25 to 75°C range
  • Cable length of 4 m
  • Mechanical life: 1 billion operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Reed Switch
Brand
Schmersal
Series
BN 31/310

Electrical

Switching Current
3:00 AM
Switching Voltage
250 V AC, 250 V DC
Electrical Connection
Pre-wired cable

Mechanical

Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13 mm
Height
25 mm
Weight
200 g
Width
88 mm
Cable Length
4 m

Environmental

Operating Temperature
-25 to 75 degC
IP Rating
IP67

Documents

IPD Product Catalogue V17
