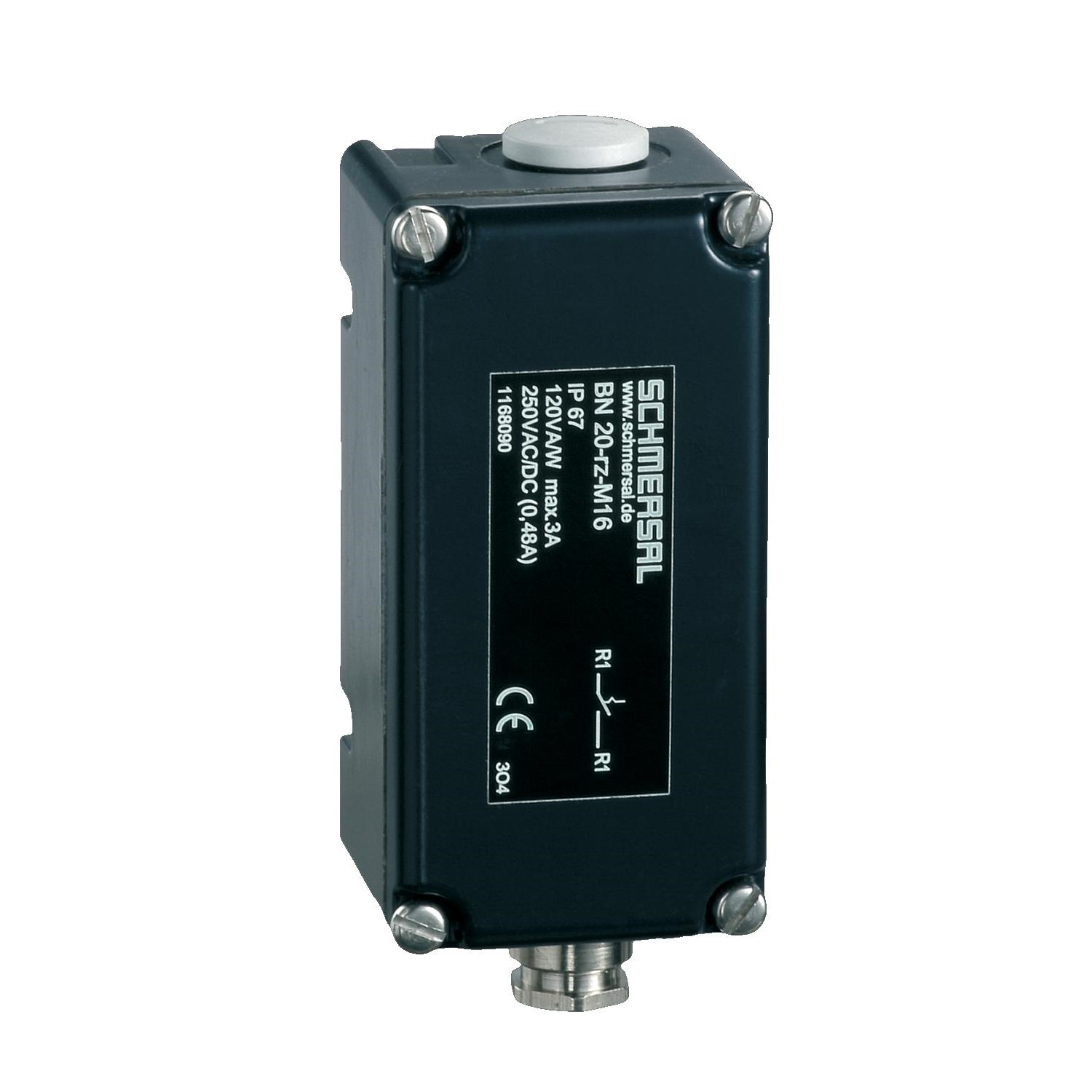

Schmersal 101057006 Magnetic Reed Switch 3A BP 10 Screw Terminal

Product Code: 101057006

  • Rated for 250 VAC, 3 A
  • Durable aluminium housing
  • IP67 protection rating
  • Operates in -25 to 75°C range
  • Magnetic drive switching type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Reed Switch
Brand
Schmersal
Series
BN 20

Electrical

Configuration Type
Normally open contact (NO)
No. of N/C Contacts
0
No. of N/O Contacts
2
Switching Current
3:00 AM
Switching Voltage
250 V AC
Electrical Connection
2 x M20 x 1,5

Mechanical

Material
Aluminium

Dimensions & Physical Data

Depth
47 mm
Height
52 mm
Weight
323 g
Width
104 mm

Environmental

Operating Temperature
-25 to 90 degC
IP Rating
IP67

Documents

IPD Product Catalogue V17
