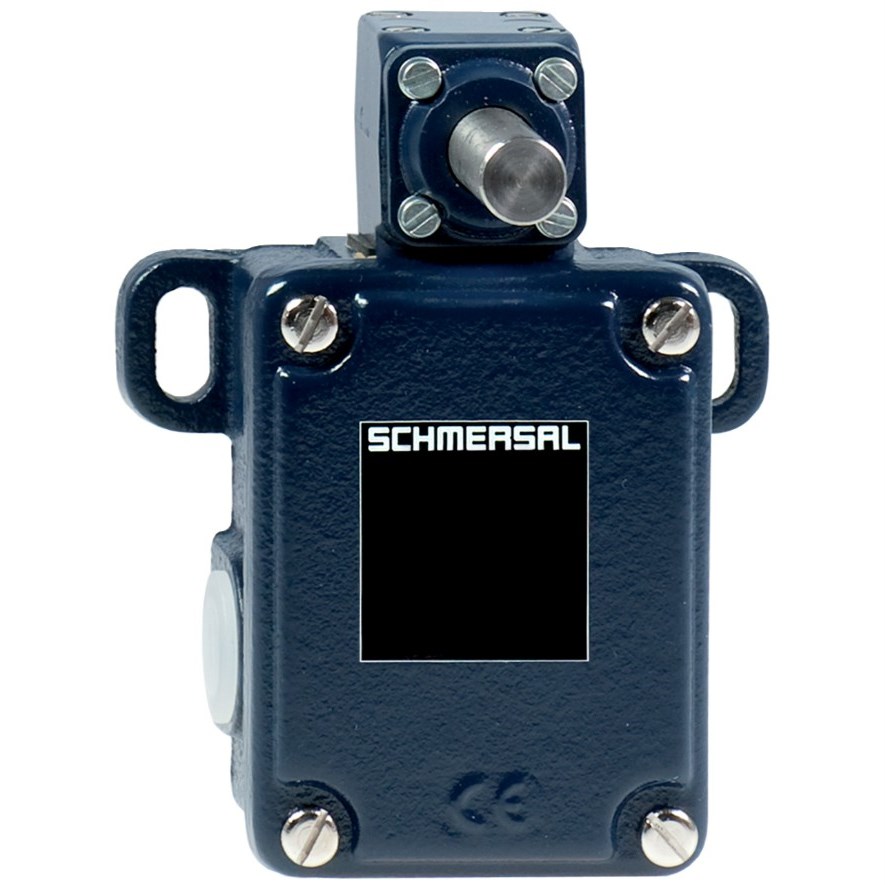

Schmersal 101056534 Position Switch 1NO-1NC Silver Contact

Product Code: 101056534

  • IP65 protection for dust and water resistance
  • Complies with CE, IEC/EN60947-5-1 standards
  • Silver contact material ensures reliability
  • Screw terminal type for easy installation
  • Durable with 5 million mechanical operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
441

Electrical

Rated Insulation Voltage (Ui)
250/500V
Switching Principle
Slow action
Utilization Category
AC-15 400 V / 4 A
Contact Configuration
1 NC + 1 NO
Mechanical Life
10,000,000 operations
Thermal Test Current
16A

Mechanical

Housing Material
Grey cast iron, galvanised; painted
Actuator / Operating Element
Roller/plunger; brass roller

Dimensions & Physical Data

Depth
99
Height
106
Weight
1.614kg
Width
63

Environmental

IP Rating
IP65
Ambient Temperature
-40°C to 200°C

Safety, Standards & Compliance

Standards and Approvals
CCC

Documents

IPD Product Catalogue V17
