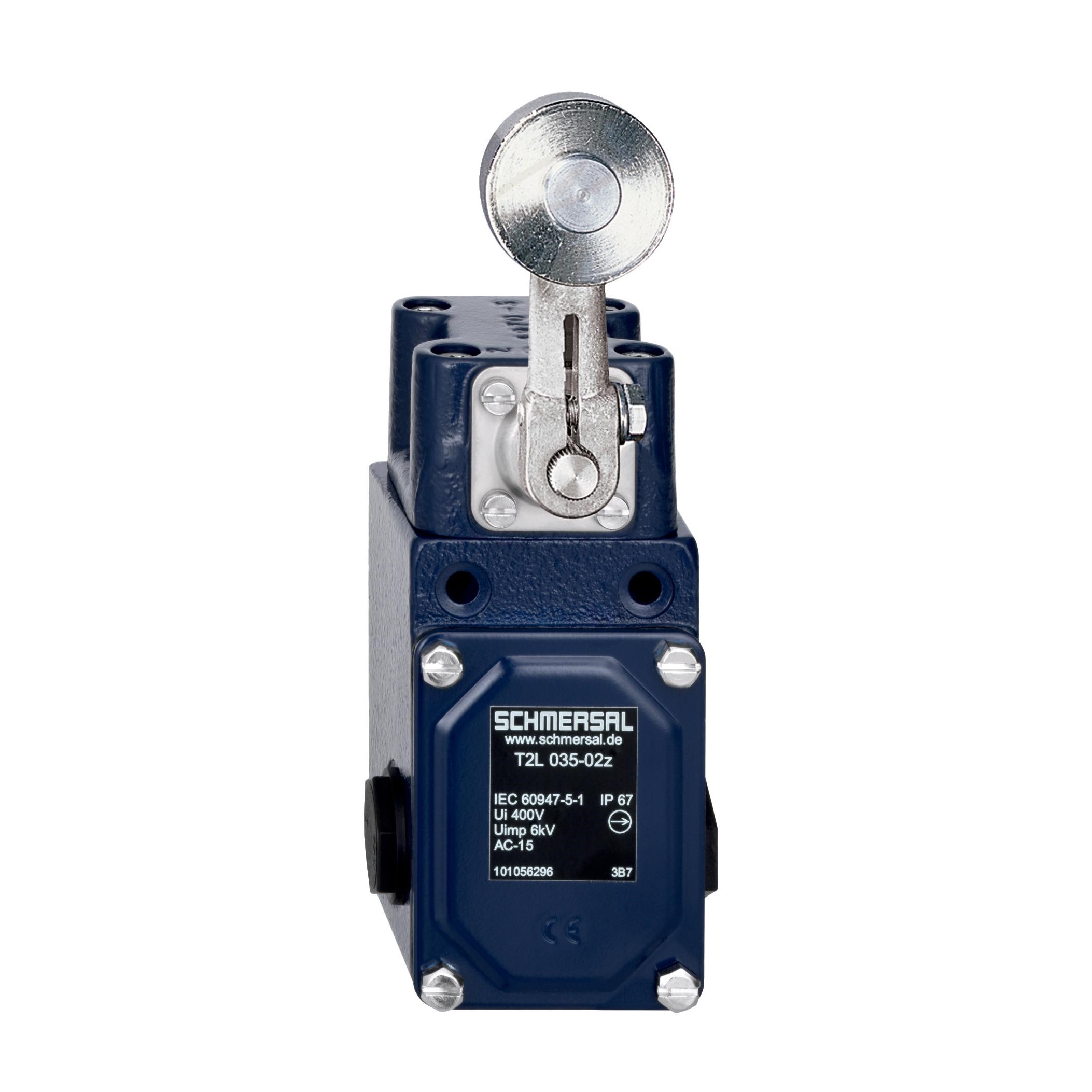

Schmersal 101056298 Position Switch Roller Lever 1NO Grey Cast Iron Galvanized Silver Contact

Product Code: 101056298

  • Rated for 400 VAC, 4 A
  • Durable grey cast iron housing
  • IP67 protection for harsh environments
  • Roller lever slow action switch
  • Complies with ENIEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
035 roller lever 2 L

Electrical

No. of N/O Contacts
2
Rated Insulation Voltage (Ui)
400V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
21mm
Height
73mm
Weight
1,725g
Width
36mm

Environmental

IP Rating
IP67
Ambient Temperature
-30°C to 90°C

Documents

IPD Product Catalogue V17
