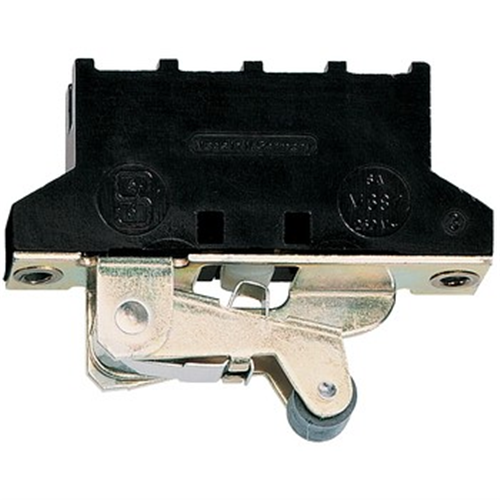

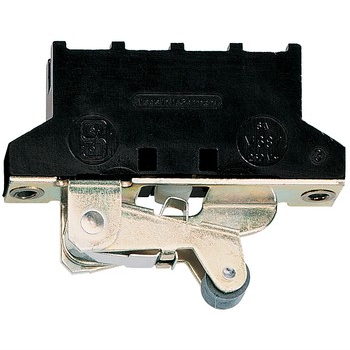

Schmersal 101055281 Micro Switch Thermosetting Resin Gold Plated Silver Contact

Product Code: 101055281

  • Durable resin housing for long-lasting use
  • IP40 rating for basic protection
  • Complies with ENIEC 60947-5-1 standards
  • Gold-plated silver contacts enhance conductivity
  • Designed for 10 million mechanical operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Micro Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250 V
Switching Element
Change-over contact with double break with two separated contact bridges
Switching Principle
Snap action with self-cleaning contact
Terminal Type
Screw terminals
Thermal Test Current
6A

Mechanical

Actuator Type
Roller plunger 8R
Contact Material
Gold-plated silver
Housing Material
thermosetting resin

Environmental

IP Rating
IP40
Ambient Temperature
-30 ... +120 °C

Documents

IPD Product Catalogue V17
