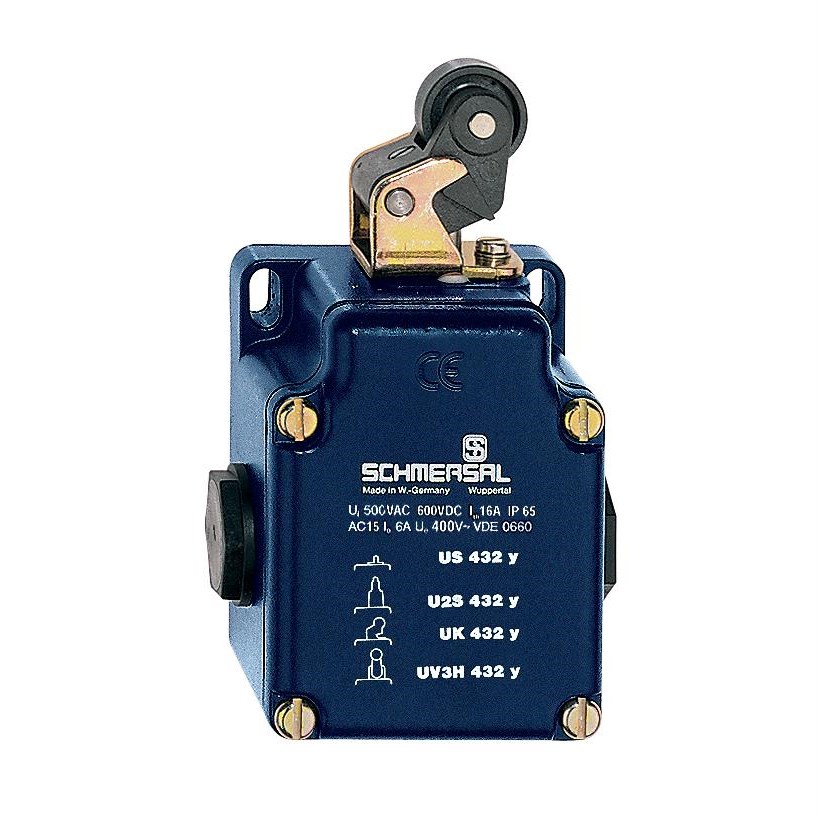

Schmersal 101055024 Position Switch Offset Roller Lever 1NO-1NC Die Cast Light Alloy Silver Contact

Product Code: 101055024

  • Rated current of 16 A
  • Durable die cast light alloy housing
  • IP65 protection for harsh environments
  • Complies with ENIEC 60947-5-1 standards
  • Offset roller lever actuator type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
U 432 Offeset roller lever K

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Offset roller lever
Contact Material
Silver
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
50mm
Height
118mm
Weight
0.36kg
Width
62mm

Environmental

IP Rating
IP65
Ambient Temperature
-20°C to 60°C
