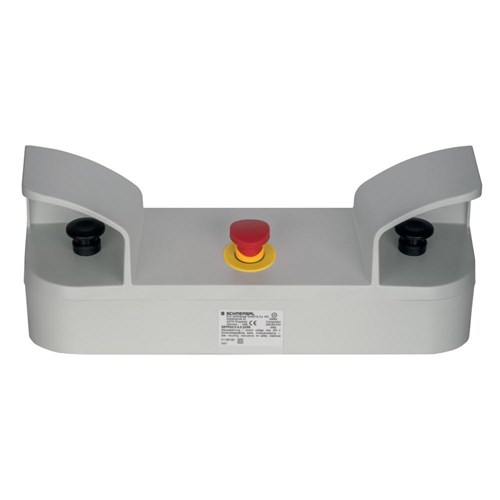

Schmersal 101027371 2-Hand Control Panel

Product Code: 101027371

  • Rated for 250 VAC, 8 A
  • Durable with 10 million cycles
  • IP65 plastic housing
  • M20 x 1.5 mm screw connection
  • Complies with EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Two - Hand Control Panel
Brand
Schmersal
Series
SEPK02.0

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
8A (AC-15), 5A (DC-13)
Rated Voltage (Ur)
250V AC (AC-15), 24V DC (DC-13)

Mechanical

Actuator Type
Pushbutton
Housing Colour
RAL 7035
Housing Material
Plastic

Dimensions & Physical Data

Depth
137mm
Height
185mm
Weight
1.9kg
Width
469mm

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
