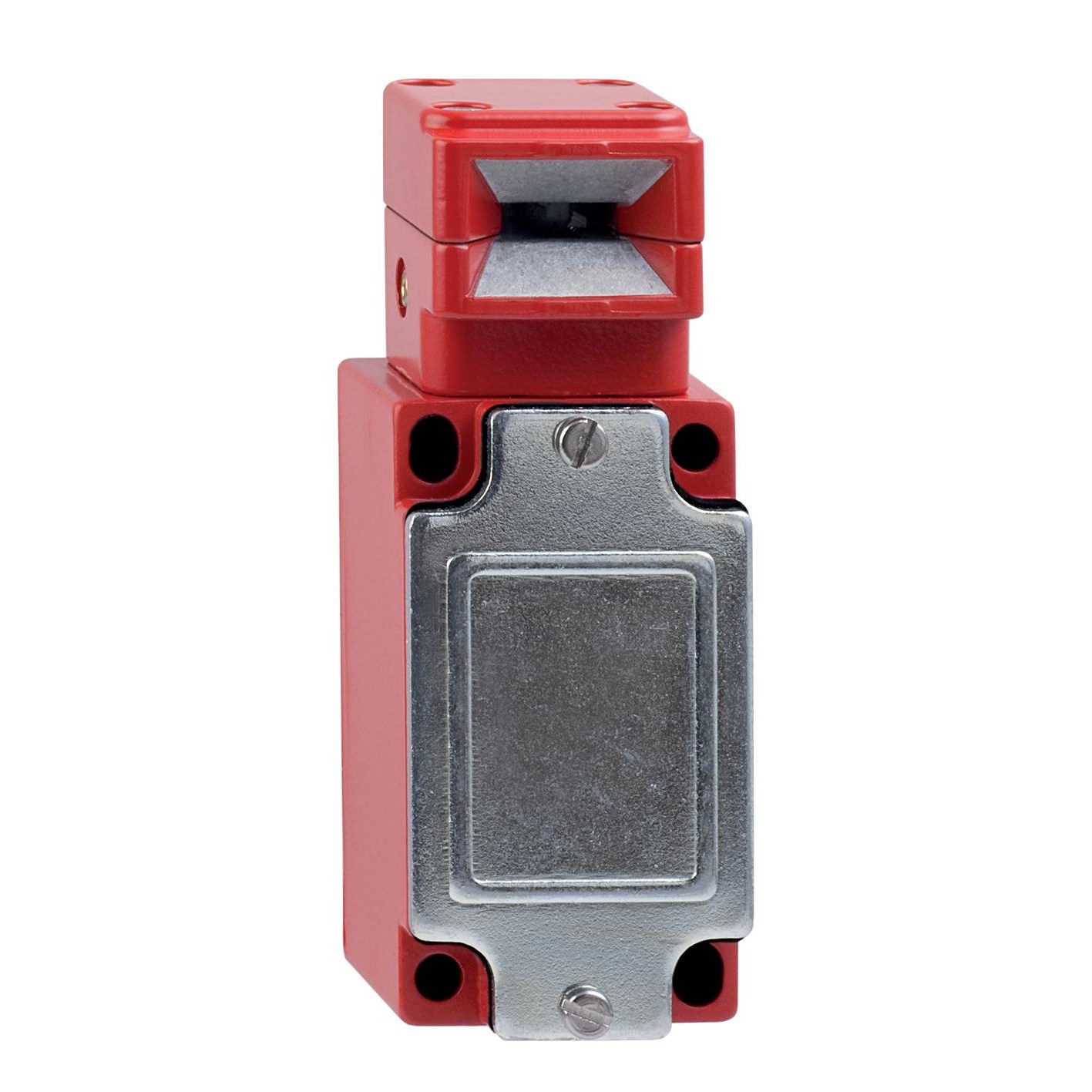

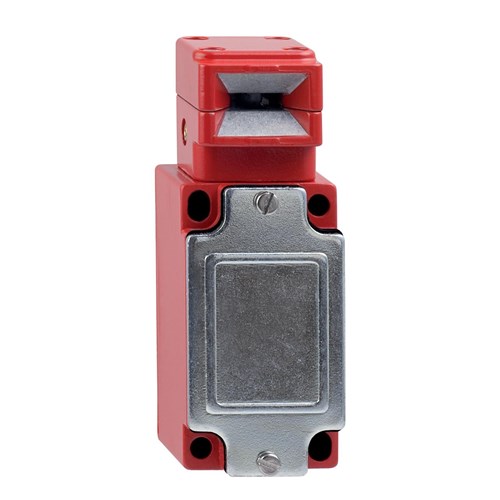

Schmersal 101020900 Safety Switch with Separate Actuator 230VAC NO+NC

Product Code: 101020900

  • Operates at 230 VAC, 6 A
  • Durable with 1M mechanical cycles
  • IP67 rated for tough environments
  • Snap action for quick response
  • Aluminium housing ensures robustness
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Trapped Key Interlock Switch
Brand
Schmersal
Series
SHG

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Terminal Type
Screw terminals M20 x 1.5

Mechanical

Housing Material
Aluminium

Dimensions & Physical Data

Depth
43mm
Height
108.5mm
Weight
0.279kg
Width
40mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
