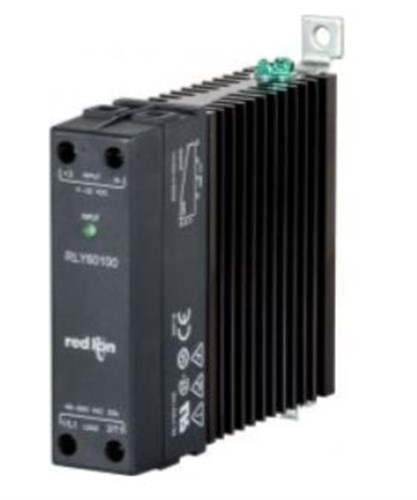

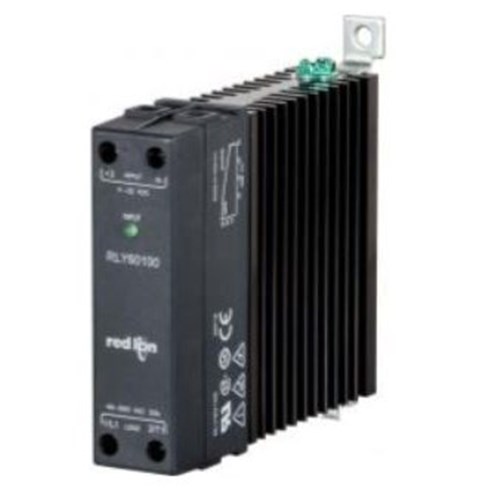

Red Lion RLY60100 Solid State Relay 1NO 8-12mA

Product Code: RLY60100

  • 49 VDC rated voltage
  • 8-12 mA current range
  • 1NO contact configuration
  • DIN rail mounting
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solid State Relay
Brand
Red Lion
Series
RLY6

Electrical

Output Ratings
30 A; 48 to 660 VAC
Input Ratings
4 to 32 VDC
Input Type
DC control
Output Type
AC zero-cross, SPST-NO (Form A) solid-state
Terminal Type
Cage-clamp terminals

Dimensions & Physical Data

Depth
98.8 mm overall
Height
97.7 mm
Width
22.4 mm

Environmental

Operating Temperature
-40 to +80 °C (derating applies)
