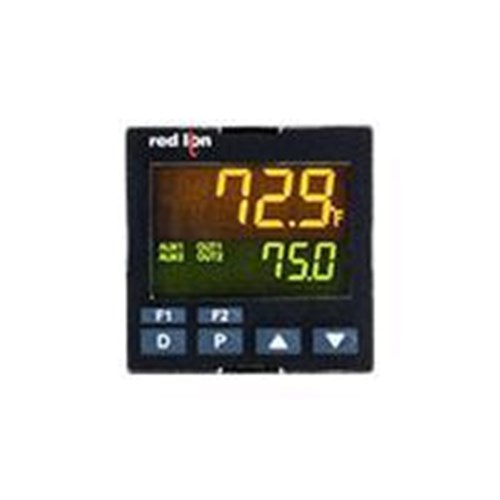

Product Code: PXU31CB0

Compact PID controller for precise regulation
Operates on 24 VDC with 5 W power consumption
Features large 11" and 7" displays
Easy installation with DIN rail mounting
IP65-rated for robust protection

Specifications

General

Product Type

PID Controller

Brand

Red Lion

Series

PXU

Electrical

Analog Resolution 16 bit input, 12 bit output	Channel Isolation DC power to sensor input and analog output: 50 V working (500 V for 1 min); Sensor input to analog output: 50 V working (500 V for 1 min); Relay contacts to all other I/O: 250 V working (2300 V for 1 min)	Digital Inputs 1
Output Ratings Control output: 4 to 20 mA, 500 O max; Secondary control relay: 5 A at 250 V AC or 30 V DC; Retransmission: 4 to 20 mA, 500 O max; Alarm relay: 3 A at 250 V AC or 30 V DC	Input Ratings 0 to 5 V DC, 0 to 10 V DC, 0 to 20 mA DC, 4 to 20 mA DC, 0 to 50 mV DC	Input Type Thermocouple, RTD, DC voltage, DC current, millivolt
Output Type 4 to 20 mA control, Relay, 4 to 20 mA retransmission	Power Consumption 6 VA at 24 V AC, 8 VA at 24 V DC	Supply Voltage 24 V AC or 24 V DC
Terminal Type Wire-clamping screw terminals

Mechanical

Housing Material

Black plastic alloy

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

79.7 mm

Height

48 mm

Width

48 mm

Environmental

Storage Temperature

-20 to 65 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Communication & Control

Fieldbus Interface

RS485

Serial Ports

Supported Serial Protocols

Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, CISPR 11 Class A, EN 61010-1, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson 2.1

PXU-PID CONTROLLER,1/16 DIN UNI.IN,24VDC,RE-TRANS. OUT USER IN,LINEAR MA OUT REDLION
