Product Code: PXU31C30

240 VAC rated voltage for reliable performance
12 in display size for clear visibility
Easy DIN Rail mounting setup
Secure screw connection type
IP65 protection against dust and water

Specifications

General

Product Type

PID Controller

Brand

Red Lion

Series

PXU

Electrical

Analog Resolution 16 bit input, 12 bit output	Channel Isolation AC power to all other I/O: 250 V working (2300 V for 1 min); Sensor input to analog output: 50 V working (500 V for 1 min); Relay contacts to all other I/O: 250 V working (2300 V for 1 min)	Digital Inputs 1
Output Ratings Control output: 4 to 20 mA, 500 O max; Secondary control relay: 5 A at 250 V AC or 30 V DC; Retransmission: 4 to 20 mA, 500 O max; Alarm relay: 3 A at 250 V AC or 30 V DC	Input Ratings 0 to 5 V DC, 0 to 10 V DC, 0 to 20 mA DC, 4 to 20 mA DC, 0 to 50 mV DC	Input Type Thermocouple, RTD, DC voltage, DC current, millivolt
Output Type 4 to 20 mA control, Relay, 4 to 20 mA retransmission	Power Consumption 5 VA	Supply Voltage 100 to 240 V AC
Terminal Type Wire-clamping screw terminals

Mechanical

Housing Material

Black plastic alloy

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

71.5 mm

Height

95.8 mm

Width

48 mm

Environmental

Storage Temperature

-20 to 65 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Communication & Control

Fieldbus Interface

RS485

Serial Ports

Supported Serial Protocols

Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, CISPR 11 Class A, EN 61010-1, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson 2.1

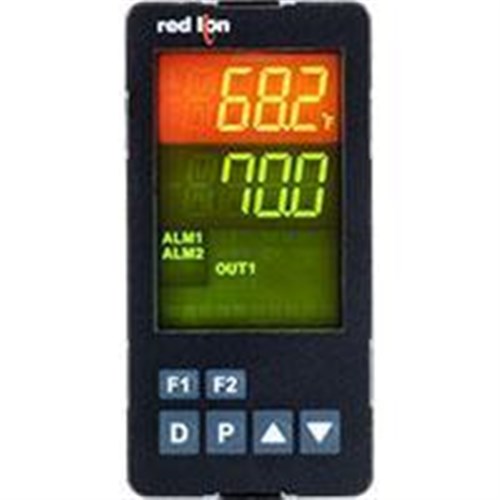

PXU-PID CONTROLLER,1/8 DIN UNI.IN,100-240VAC,RS-485 USER IN,LINEAR MA OUT REDLION
