Specifications

Product Type

Pid Controller

Brand

Red Lion

Series

PXU

Analog Resolution 16 bit input, 12 bit output	Channel Isolation AC power to all other I/O: 250 V working (2300 V for 1 min); Sensor input to analog output: 50 V working (500 V for 1 min); Relay contacts to all other I/O: 250 V working (2300 V for 1 min)	Digital Inputs 0
Output Ratings Control output: 4 to 20 mA, 500 O max; Alarm relay: 3 A at 250 V AC or 30 V DC	Input Ratings 0 to 5 V DC, 0 to 10 V DC, 0 to 20 mA DC, 4 to 20 mA DC, 0 to 50 mV DC	Input Type Thermocouple, RTD, DC voltage, DC current, millivolt
Output Type 4 to 20 mA control, Alarm relay	Power Consumption 5 VA	Supply Voltage 100V to 240V AC
Terminal Type Wire-clamping screw terminals

Housing Material

Black plastic alloy

Depth

79.7mm

Height

48mm

Width

48mm

Storage Temperature

-20°C to 65°C

Operating Temperature

0°C to 50°C

IP Rating

IP65

Serial Ports

Certifications / Approvals

CE, EN 61326-1, CISPR 11 Class A, EN 61010-1, RoHS, UKCA, UL E179259

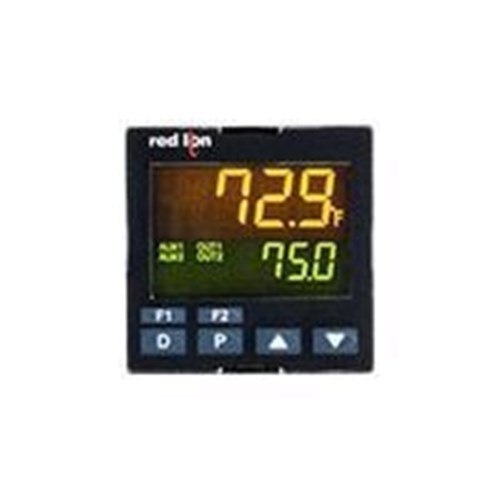

PXU-PID CONTROLLER,1/16 DIN UNI.IN,100-240VAC,ACCEPT TC & RTD,LINEAR MA OUT REDLION
