Product Code: PXU21C20

Wide voltage range: 100-240 VAC
IP65 protection for harsh environments
Operates in temps from 0 to 50°C
Meets CE, RoHS, UL standards

Specifications

General

Product Type

Pid Controller

Brand

Red Lion

Series

PXU

Electrical

Analog Resolution 16 bit input, 12 bit output	Channel Isolation AC power to all other I/O: 250 V working (2300 V for 1 min); Sensor input to analog output: 50 V working (500 V for 1 min); Relay contacts to all other I/O: 250 V working (2300 V for 1 min)	Digital Inputs 1
Output Ratings SSR drive: 12 V DC ±10% at 40 mA max; Secondary control relay: 5 A at 250 V AC or 30 V DC; Retransmission: 4 to 20 mA, 500 O max; Alarm relay: 3 A at 250 V AC or 30 V DC	Input Ratings 0 to 5 V DC, 0 to 10 V DC, 0 to 20 mA DC, 4 to 20 mA DC, 0 to 50 mV DC	Input Type Thermocouple, RTD, DC voltage, DC current, millivolt
Output Type Logic/SSR drive, Relay, 4 to 20 mA retransmission	Power Consumption 5 VA	Supply Voltage 100V to 240V AC
Terminal Type Wire-clamping screw terminals

Mechanical

Housing Material

Black plastic alloy

Dimensions & Physical Data

Depth

79.7mm

Height

48mm

Width

48mm

Environmental

Storage Temperature

-20°C to 65°C

Operating Temperature

0°C to 50°C

IP Rating

IP65

Communication & Control

Fieldbus Interface

RS485

Serial Ports

Supported Serial Protocols

Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Certifications / Approvals

CE, EN 61326-1, CISPR 11 Class A, EN 61010-1, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson 2.1

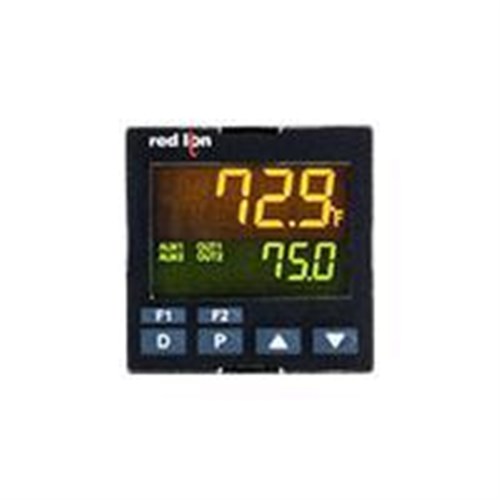

PXU-PID CONTROLLER,1/16 DIN UNI.IN,100-240VAC,SS OUT,USER IN,RE-TRANS OUT REDLION
