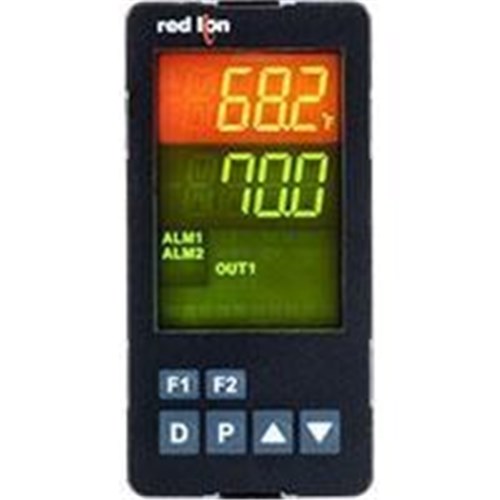

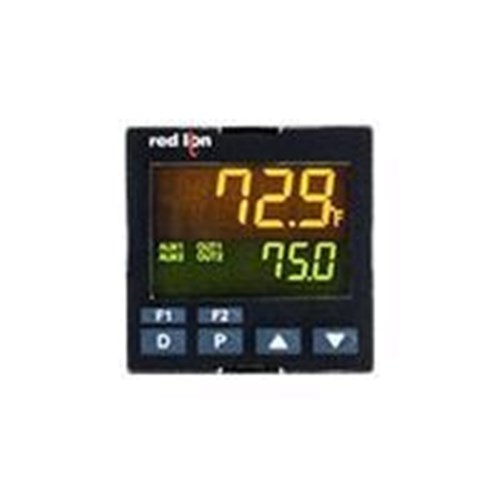

Product Code: PXU21A30

PID Controller from PxU series
Operates at 100-240 VAC
IP65 rated for dust and water protection
Suitable for 0 to 50°C environments
CE, RoHS, UL approved

Specifications

General

Product Type

PID Controller

Brand

Red Lion

Series

PXU

Electrical

Analog Resolution 16 bit input	Channel Isolation AC power to all other I/O: 250 V working (2300 V for 1 min); Relay contacts to all other I/O: 250 V working (2300 V for 1 min)	Digital Inputs 2
Output Ratings SSR drive: 12 V DC ±10% at 40 mA max; Secondary control relay: 5 A at 250 V AC or 30 V DC; Alarm relay: 3 A at 250 V AC or 30 V DC	Input Ratings 0 to 5 V DC, 0 to 10 V DC, 0 to 20 mA DC, 4 to 20 mA DC, 0 to 50 mV DC	Input Type Thermocouple, RTD, DC voltage, DC current, millivolt
Output Type Logic/SSR drive, Relay	Power Consumption 5 VA	Supply Voltage 100 to 240 V AC
Terminal Type Wire-clamping screw terminals

Mechanical

Housing Material

Black plastic alloy

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

71.5 mm

Height

95.8 mm

Width

48 mm

Environmental

Storage Temperature

-20 to 65 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Communication & Control

Fieldbus Interface

RS485

Serial Ports

Supported Serial Protocols

Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, CISPR 11 Class A, EN 61010-1, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson 2.1

PXU-PID CONTROLLER,1/8 DIN UNI.IN,100-240VAC,SS OUT 2 USER IN,IP65,RS-485 REDLION
