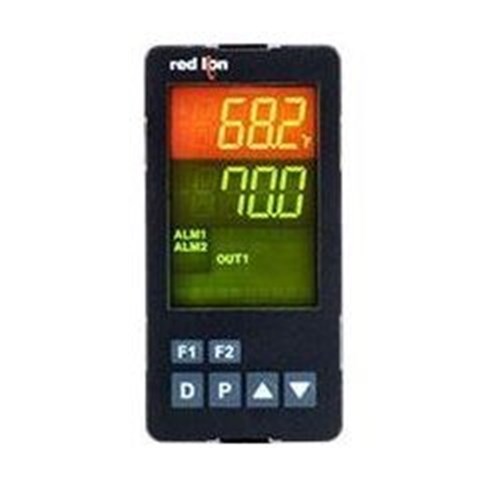

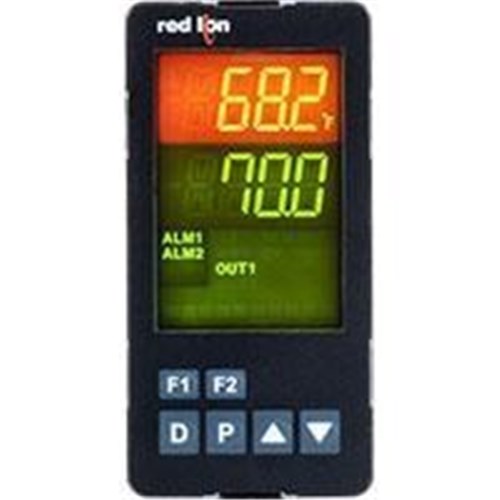

Product Code: PXU20030

Dual colour LCD with backlight
Operates at 100-240 VAC
Panel mount design
CE, RoHS, UL compliant

Specifications

General

Product Type

PID Controller

Brand

Red Lion

Series

PXU

Electrical

Analog Resolution 16 bit input	Channel Isolation AC power to all other I/O: 250 V working (2300 V for 1 min); Relay contacts to all other I/O: 250 V working (2300 V for 1 min)	Digital Inputs 0
Output Ratings SSR drive: 12 V DC ±10% at 40 mA max; Alarm relay: 3 A at 250 V AC or 30 V DC	Input Ratings 0 to 5 V DC, 0 to 10 V DC, 0 to 20 mA DC, 4 to 20 mA DC, 0 to 50 mV DC	Input Type Thermocouple, RTD, DC voltage, DC current, millivolt
Output Type Logic/SSR drive, Alarm relay	Power Consumption 5 VA	Supply Voltage 100 to 240 V AC
Terminal Type Wire-clamping screw terminals

Mechanical

Housing Material

Black plastic alloy

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

71.5 mm

Height

95.8 mm

Width

48 mm

Environmental

Storage Temperature

-20 to 65 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Communication & Control

Serial Ports

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, CISPR 11 Class A, EN 61010-1, RoHS, UKCA, UL E179259

PXU-PID CONTROLLER,1/8 DIN UNI.IN,100-240VAC,SS OUT ACCEPT TC & RTD,IP65 REDLION

Product Code: PXU20030
