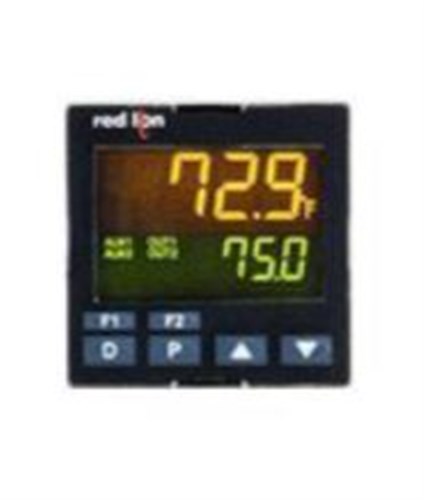

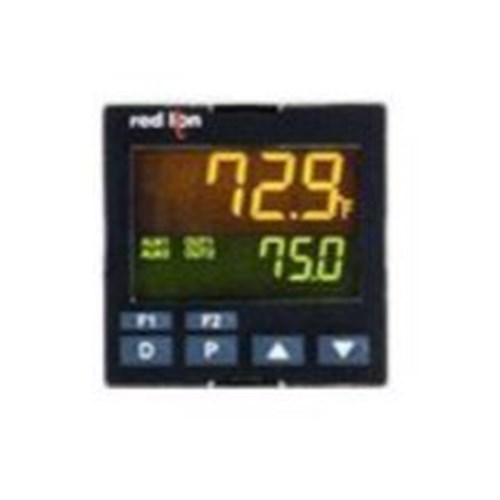

Product Code: PXU11B20

Operates on 100-240 VAC, 50/60 Hz
Secure wire clamp screw connection
Robust IP65 protection rating
Reliable in 0 to 50°C environments
CE, RoHS, UL certified for safety

Specifications

General

Product Type

Pid Controller

Brand

Red Lion

Series

PXU

Electrical

Analog Resolution 16 bit input	Channel Isolation AC power to all other I/O: 250 V working (2300 V for 1 min); Relay contacts to all other I/O: 250 V working (2300 V for 1 min)	Digital Inputs 1
Output Ratings Control relay: 5 A at 250 V AC or 30 V DC; Alarm relay: 3 A at 250 V AC or 30 V DC	Input Ratings 0 to 5 V DC, 0 to 10 V DC, 0 to 20 mA DC, 4 to 20 mA DC, 0 to 50 mV DC, CT: 0 to 25 mA AC	Input Type Thermocouple, RTD, DC voltage, DC current, millivolt, CT
Output Type Relay	Power Consumption 5 VA	Supply Voltage 100V to 240V AC
Terminal Type Wire-clamping screw terminals

Mechanical

Housing Material

Black plastic alloy

Dimensions & Physical Data

Depth

79.7mm

Height

48mm

Width

48mm

Environmental

Storage Temperature

-20°C to 65°C

Operating Temperature

0°C to 50°C

IP Rating

IP65

Communication & Control

Fieldbus Interface

RS485

Serial Ports

Supported Serial Protocols

Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Certifications / Approvals

CE, EN 61326-1, CISPR 11 Class A, EN 61010-1, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson 2.1

PXU-PID CONTROLLER,1/16 DIN UNI.IN,100-240VAC,CT IN,USER IN,DUAL RELAY OUT REDLION
