Specifications

Product Type

PID Controller

Brand

Red Lion

Series

PXU

Input Ratings Temperature/RTD Indication Accuracy: ± (0.3% of span, +1 °C) at 25 °C ambient after 20 minute warm up. Includes NIST conformity, cold junction effect, A/D conversion errors and linearization conformity. Thermocouple Inputs: Types: T, E, J, K, R, S, B, N, L, U, and TXK Input Impedance: Approximately 4.7 M? Lead Resistance Effect: -0.3 µV/? Cold Junction Compensation: Less than ±1.5 °C typical (2.5 °C max) error over 0 to 50 °C temperature range. RTD Inputs: Type: 2 or 3 wire Excitation: 180 µA typical Resolution: 1° or 0.1° for all types Process Inputs: 0-5 or 0-10 VDC, 0-20 or 4-20 mA, 0-50 mV CT Input (Optional): CT is included with this option Type: Single phase, full wave monitoring of load currents Input: 0 to 25 mA AC Display Scale Range: 1.0 to 999.9 amperes Input Impedence: 10 W @ 50/60 Hz Frequency: 50/60 Hz Maximum Continuous Overload: 31 mA AC CT Rating Current Ratio: 40 A/30.7 mA AC Turn Ratio: 1:1300 Remote Input: Input: Program selectable 0-5 V, 1-5 V, 0-10 V, 0-20 mA, 4-20 mA A/D Conversion Rate: 10 samples per second	Input Type RTD/ Thermocouple/ CT/ Process/ Remote	Output Type Time proportioning or DC Analog
Power Consumption 8 VA	Supply Voltage 24 VDC	Terminal Type Screw Terminal

Housing Material Plastic	Mounting Method Panel mount	Display Colour/Type Top: OrangeBottom: Green
Display Lines 2

Depth 79.7 mm	Height 48 mm	Width 48 mm
Display Size Line 1 - 0.43" (11 mm); Line 2 - 0.27"(7.0 mm)

Storage Temperature

-20 to 65 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Compliance Standards

UL Listed: File # E179259

Hazardous Location Ratings

CE Approved EN 61326-1 Immunity to Industrial Locations Emission CISPR 11 Class A EN 61010-1 RoHS Compliant

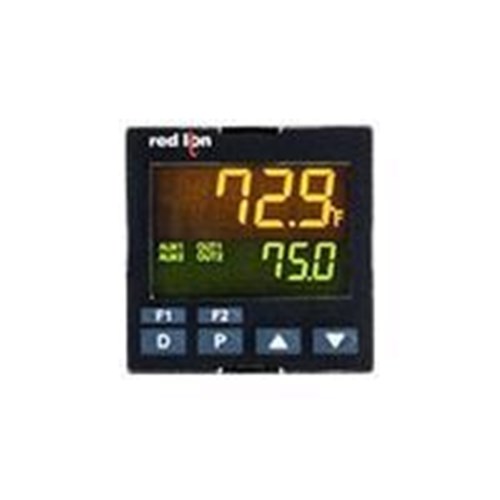

Red Lion PXU11AB0 Temperature/Process Controller RS-485 24VDC 1/16 in Relay
